VISHAYDatasheet (PDF)

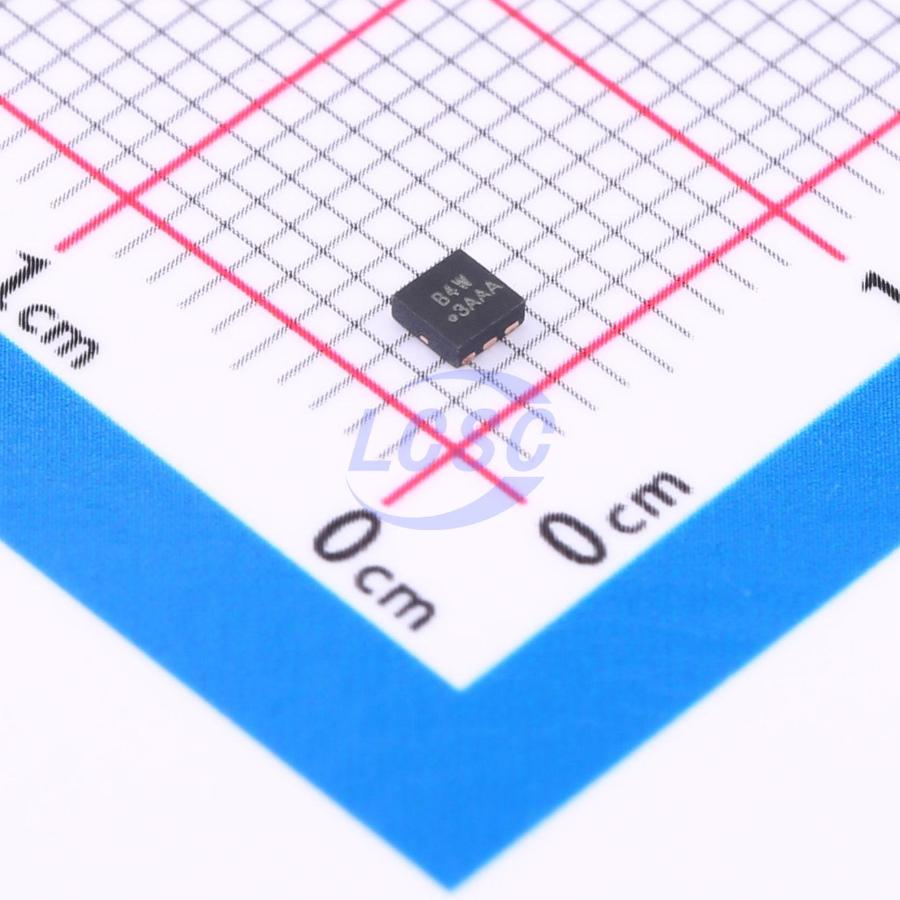

SIA485DJ-T1-GE3
P-Channel 150V 1.6A 2.9W Surface Mount PowerPAK-SC-70-6L
PowerPAK-SC-70-6LROHS3 CompliantDiscontinued
MOSFET P-CH 150V 1.6A PowerPAK-SC-70-6L
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA485DJ-T1-GE3
- Store part #
- C727363
- Package / case
- PowerPAK-SC-70-6L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C727363
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.52 | ₹53.52 |
| 10+ | ₹47.16 | ₹471.60 |
| 30+ | ₹44.49 | ₹1,334.70 |
| 100+ | ₹41.01 | ₹4,101.00 |
| 500+ | ₹39.57 | ₹19,785.00 |
| 1,000+ | ₹38.75 | ₹38,750.00 |
1 × ₹53.52
₹53.52
excl. GST
₹63.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA485DJ-T1-GE3
₹53.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 8pF
- Ciss-Input Capacitance
- 155pF
- Pd - Power Dissipation
- 2.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 1.6A
- Reverse Transfer Capacitance (Crss)
- 5.5pF
- RDS(on)
- 2.6Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
Applications
- Active clamp switch
- Load switch
Key features
- TrenchFET power MOSFET
- Thermally enhanced PowerPAK SC-70 package
- Small footprint area
- RoHS COMPLIANT
- Low on-resistance
- HALOGEN FREE
- 100 % Rg and UIS tested
