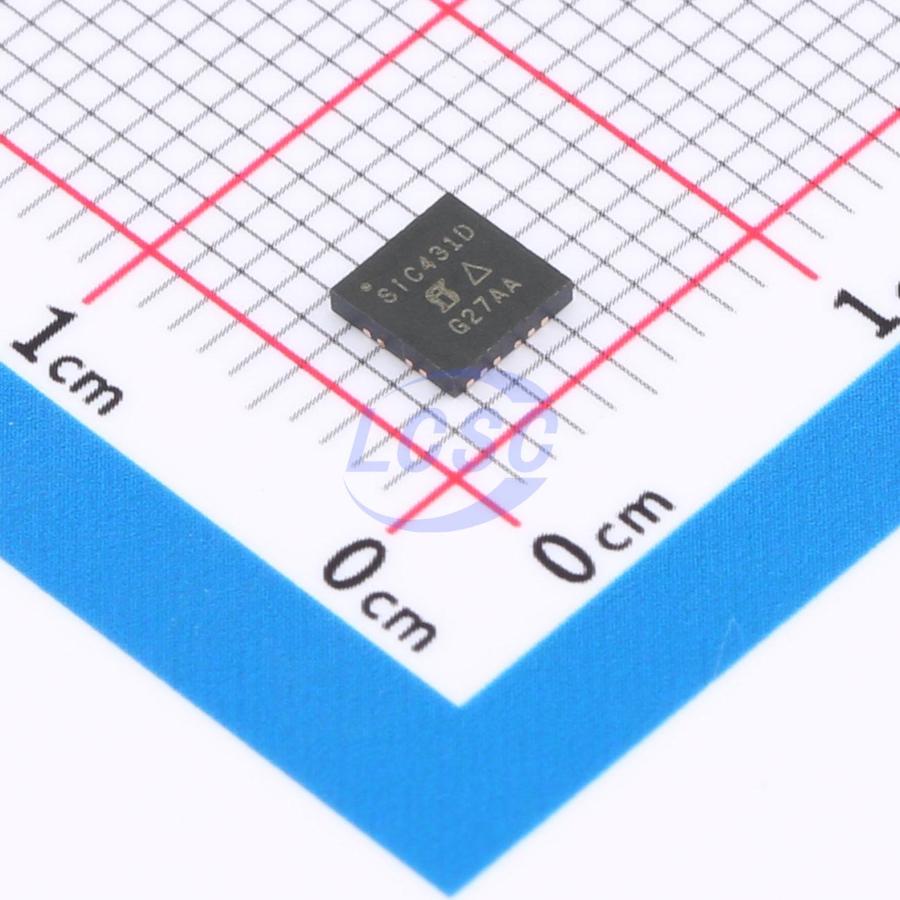

VISHAY

SIC431DED-T1-GE3

1MHz Step-down type Adjustable 600mV~21.6V 24A MLP-24L-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

MLP-24L-EP(4x4)ROHS3 CompliantActive

3 V to 24 V Input, 24 A microBUCK DC/DC Converter

Manufacturer: VISHAY
Manufacturer part #: SIC431DED-T1-GE3
Store part #: C7011016
Package / case: MLP-24L-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7 in stock

#C7011016

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹367.85	₹367.85
10+	₹359.64	₹3,596.40
30+	₹354.18	₹10,625.40
100+	₹348.72	₹34,872.00

Quantity (min 1)

1 × ₹367.85

₹367.85

excl. GST

₹434.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SIC431DED-T1-GE3

₹367.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃@(TA)
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Adjustable soft-start;Light load efficient mode;Output voltage tracking;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~21.6V
Output Current: 24A
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

The SiC431 is a synchronous buck regulator with integrated high side and low side power MOSFETs. Its power stage is capable of supplying 24 A continuous current at up to 1 MHz switching frequency. This regulator produces an adjustable output voltage down to 0.6 V from 3 V to 24 V input rail to accommodate a variety of applications, including computing, consumer electronics, telecom, and industrial. SiC431’s architecture supports ultrafast transient response with minimum output capacitance and tight ripple regulation at very light load. The device is internally compensated and no external ESR network is required for loop stability purposes. The device also incorporates a power saving scheme that significantly increases light load efficiency. The regulator integrates a full protection feature set, including output over voltage protection (OVP), cycle by cycle over current protection (OCP) short circuit protection (SCP) and thermal shutdown (OTP). It also has UVLO and a user programmable soft start. The SiC431 is available in lead (Pb) -free power enhanced MLP44-24L package in 4 mm×4 mm dimension.

Applications

5 V, 12 V, and 24 V input rail POLs
Desktop, notebooks, server, and industrial computing
Industrial and automation
consumer electronics

Key features

Versatile
Operation from 3 V to 24 V input voltage RoHS
Adjustable output voltage down to 0.6 V COMPLIANT
Scalable solution 8 A (SiC438), 12 A (SiC437), and 24 A (SiC431) HALOGEN FREE
Output voltage tracking and sequencing with pre-bias start up
± 1 % output voltage accuracy from -40 °C to +125 °C
Highly efficient
97 % peak efficiency
1 μA supply current at shutdown
50 μA operating current, not switching
Highly configurable
Four programmable switching frequencies available: 300 kHz, 500 kHz, 750 kHz, and 1 MHz
Adjustable soft start and adjustable current limit
Three modes of operation: forced continuous conduction, power save (SiC431B, SiC431D), or ultrasonic (SiC431A, SiC431C)
Robust and reliable
Cycle-by-cycle current limit
Output overvoltage protection
Output undervoltage / short circuit protection with auto retry
Power good flag and over temperature protection
