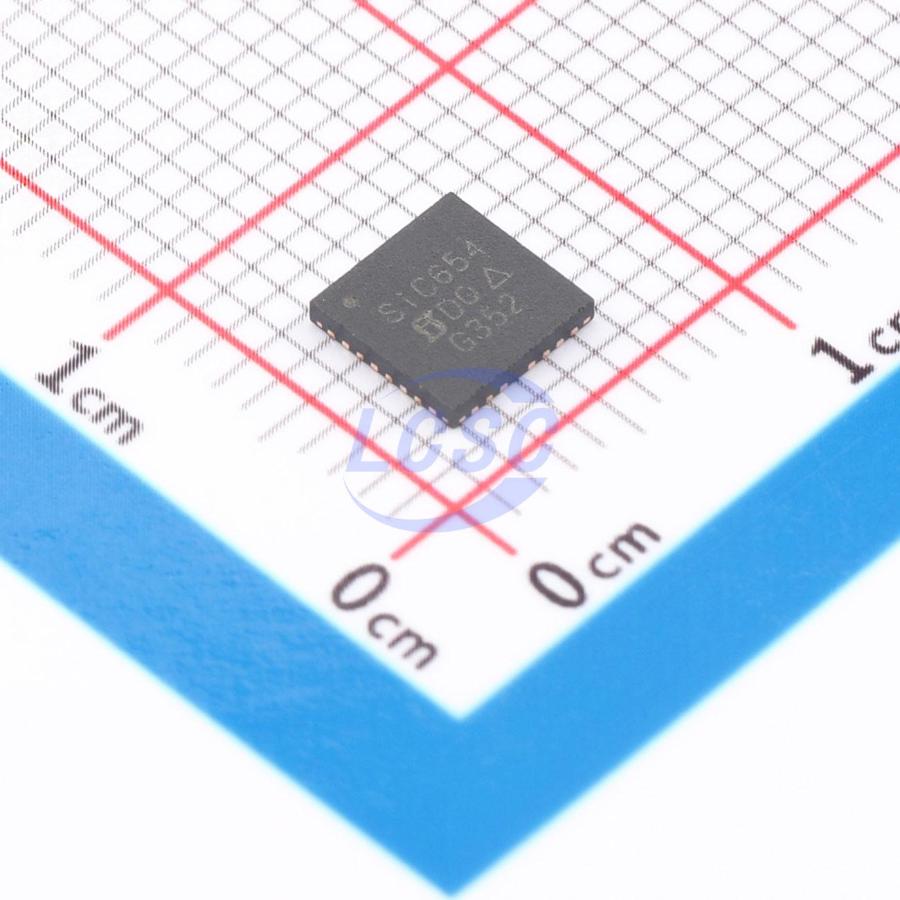

SIC654CD-T1-GE3

The SiC654 is a high frequency integrated power stage optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance with very low shutdown current. Packaged in Vishay’s proprietary 5 mm×5 mm MLP package, SiC654 enables voltage regulator designs to deliver up to 50 A continuous current per phase. The internal power MOSFETs utilize Vishay’s latest TrenchFET technology that delivers industry benchmark performance to significantly reduce switching and conduction losses. The SiC654 incorporates an advanced MOSFET gate driver IC that features high current driving capability, adaptive dead-time control, an integrated bootstrap switch, and user selectable zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V and 3.3 V PWM logic. The device also supports PS4 mode to reduce power consumption when the system is in standby state. The SiC654 offers operating temperature monitoring, protection features, and warning flags that improve system monitoring and reliability.

Applications

• Multi - phase VRDs for computing, graphics card and memory
• Intel core processor power delivery - VCORE, VGRAPHICS, VSYSTEM AGENT - VCCGI
• Up to 24 V rail input DC/DC VR modules

Key features

• Highly efficient
• Thermally enhanced PowerPAK MLP55 - 31 L RoHS package
• Latest TrenchFET technology and low HALOGEN side MOSFET with integrated Schottky diode
• Integrated, low impedance, bootstrap switch
• Power MOSFETs optimized for 19 V input stage
• Supports PS4 mode light load requirement with low shutdown supply current (5 μA, 3 μA)
• Zero current detection for improved light load efficiency
• Highly versatile
• 5 V and 3.3 V PWM logic with tri - state and hold - off timer
• 5 V DSBL#, ZCD_EN# logic with PS4 state support
• High frequency operation up to 2 MHz
• Robust and reliable
• Delivers in excess of 50 A continuous current, 70 A, peak (10 ms) and 100 A, peak (10 μs)
• Over current protection
• Over temperature flag
• Over temperature protection
• Undervoltage lockout protection
• High side MOSFET short detection
• Effective monitoring and reporting
• Accurate temperature reporting
• Warnings and faults reporting flag
