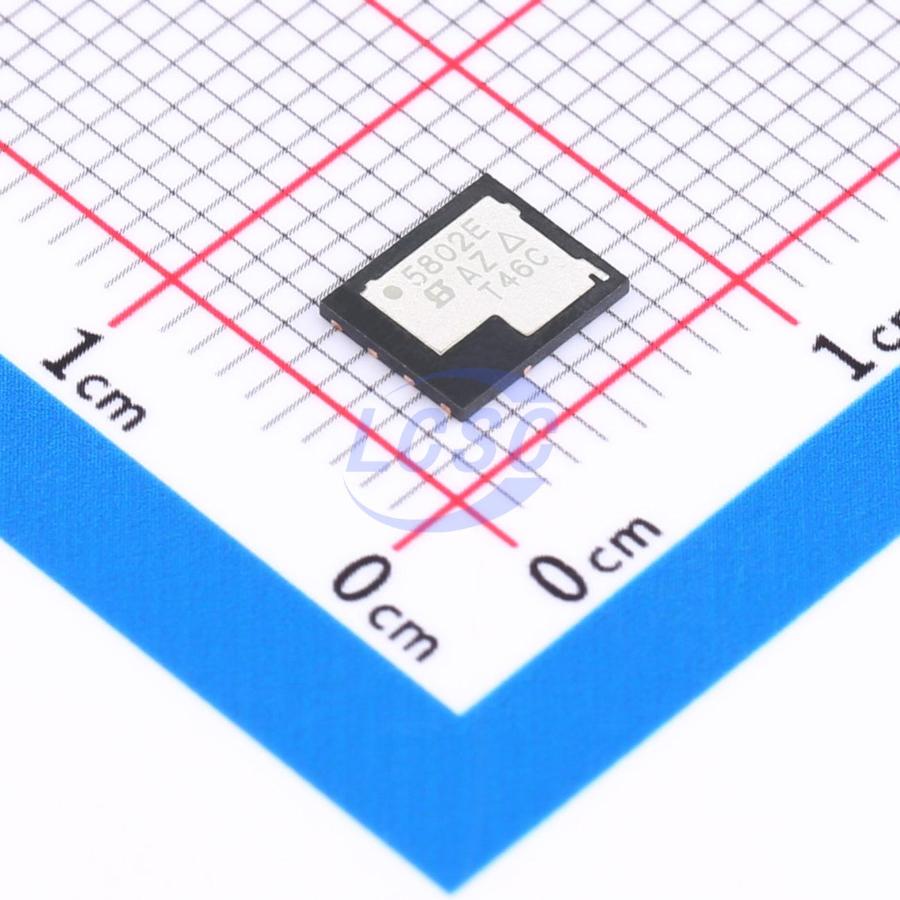

SIDR5802EP-T1-RE3
N-Channel 80V 153A 150W PowerPAKSO-8DC
PowerPAKSO-8DCROHS3 CompliantActive
MOSFET N-CH 80V 153A PowerPAKSO-8DC
- Manufacturer
- VISHAY
- Manufacturer part #
- SIDR5802EP-T1-RE3
- Store part #
- C6679973
- Package / case
- PowerPAKSO-8DC
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C6679973
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹319.86 | ₹319.86 |
| 10+ | ₹312.27 | ₹3,122.70 |
| 30+ | ₹307.04 | ₹9,211.20 |
| 100+ | ₹301.83 | ₹30,183.00 |
1 × ₹319.86
₹319.86
excl. GST
₹377.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIDR5802EP-T1-RE3
₹319.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 1.285nF
- Current - Continuous Drain(Id)
- 153A
- Ciss-Input Capacitance
- 3.02nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 4mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.59 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converters
- OR-ing and hot swap switch
- Power supplies
- Motor drive control
- Battery management
Key features
- TrenchFET Gen V power MOSFET
- Very low RDS-Qg figure-of-merit (FOM)
- Tuned for the lowest RDS-Ross FOM
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
