VISHAYDatasheet (PDF)

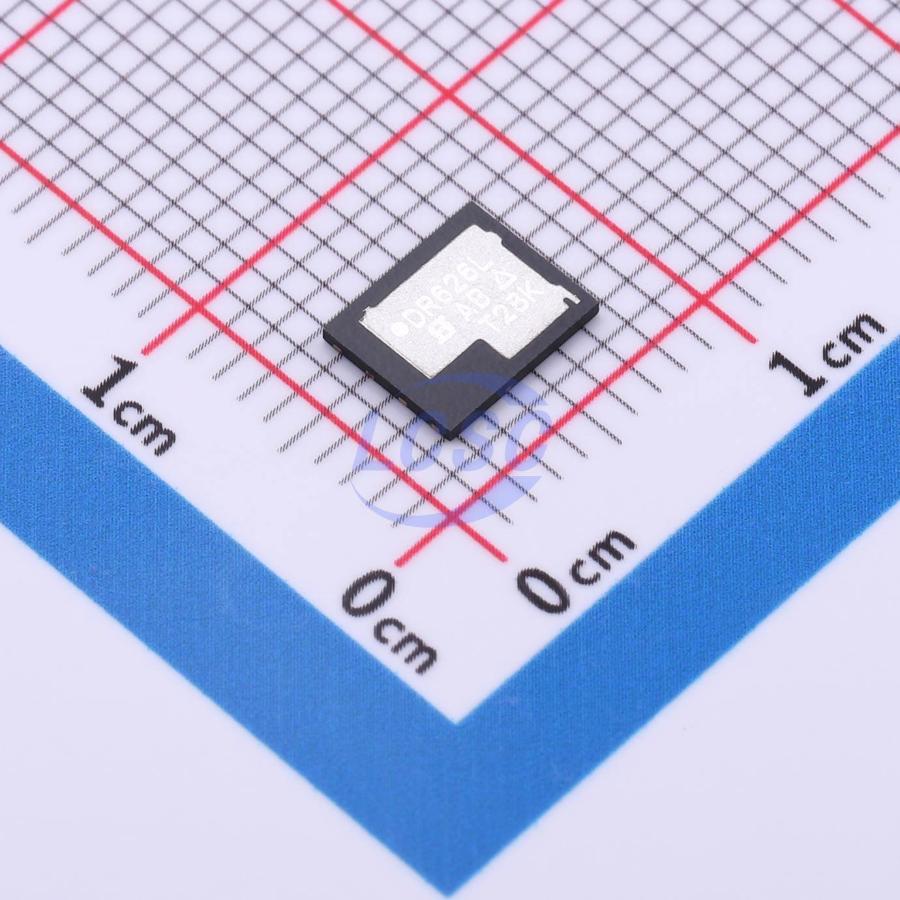

SIDR626LDP-T1-RE3
N-Channel 60V 186A 125W Surface Mount PowerPAK-SO-8DC
PowerPAK-SO-8DCROHS3 CompliantActive
MOSFET N-CH 60V 186A PowerPAK-SO-8DC
- Manufacturer
- VISHAY
- Manufacturer part #
- SIDR626LDP-T1-RE3
- Store part #
- C3279576
- Package / case
- PowerPAK-SO-8DC
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
192 in stock
#C3279576
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.42 | ₹227.42 |
| 10+ | ₹221.77 | ₹2,217.70 |
| 30+ | ₹218.08 | ₹6,542.40 |
| 100+ | ₹214.18 | ₹21,418.00 |
1 × ₹227.42
₹227.42
excl. GST
₹268.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIDR626LDP-T1-RE3
₹227.42 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.34nF
- Current - Continuous Drain(Id)
- 186A
- Ciss-Input Capacitance
- 5.9nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 2.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 135nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.75 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Solar micro inverter
- Motor drive switch
- Battery and load switch
- Industrial
Key features
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure-of-merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- RoHS COMPLIANT
- 100 % Rg and UIS tested
- HALOGEN FREE
- Top side cooling feature provides additional venue for thermal transfer
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIDR626LEP-T1-RE3#C3289538VISHAY · PowerPAK-SO-8DC | VISHAY | PowerPAK-SO-8DC | 4,148 | ₹328.65 · 4,148 in stock | View |
 | CSD18540Q5B(TOKMAS)#C19626234Tokmas · DFN-8(5x6) | Tokmas | DFN-8(5x6) | 4,694 | ₹120.95 · 4,694 in stock | View |
 | E060N2P3HL1#C29781165Existar · PDFN5x6-8 | Existar | PDFN5x6-8 | 446 | ₹83.42 · 446 in stock | View |
 | YJG210G06AR#C20605772YANGJIE · PDFN5060-8L | YANGJIE | PDFN5060-8L | 4,843 | ₹144.45 · 4,843 in stock | View |
| CMSA024N06L#C54443164Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 244 | ₹75.44 · 244 in stock | View | |
