VISHAYDatasheet (PDF)

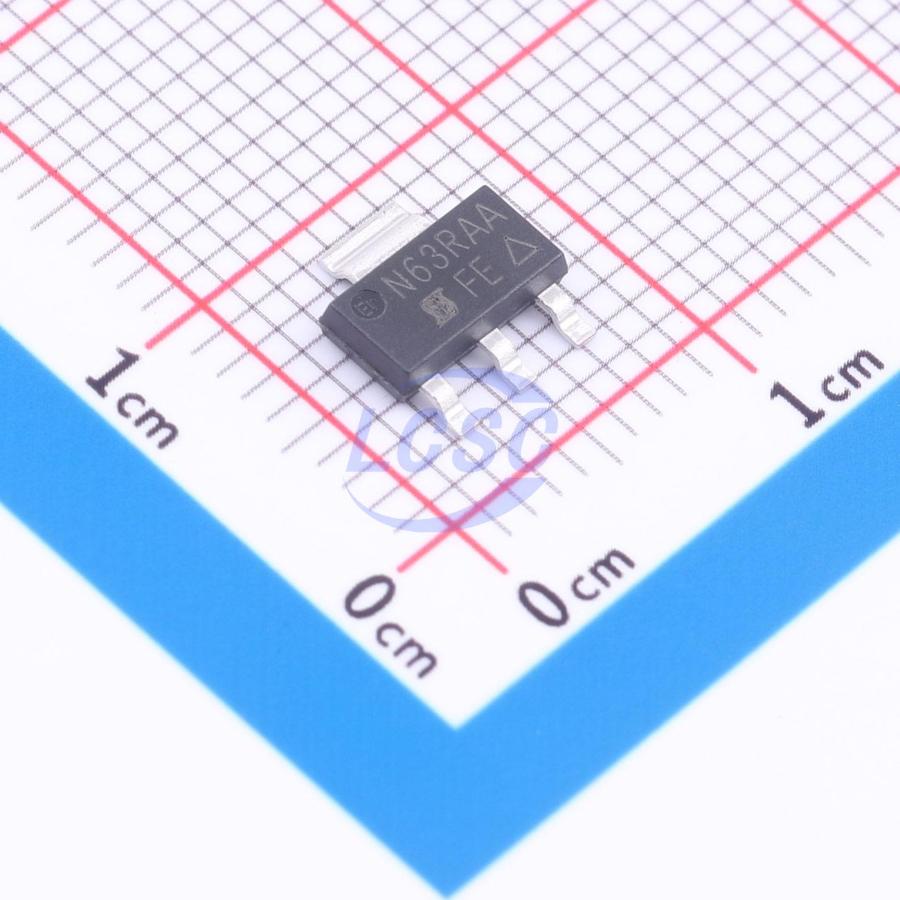

SIHFL9014TR-GE3
3.1W 60V 1.1A 500mΩ@10V 1 P-Channel P-Channel SOT-223-3 Single FETs, MOSFETs RoHS
SOT-223-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHFL9014TR-GE3
- Store part #
- C727689
- Package / case
- SOT-223-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C727689
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.92 | ₹77.92 |
| 10+ | ₹76.18 | ₹761.80 |
| 30+ | ₹75.09 | ₹2,252.70 |
| 100+ | ₹74.01 | ₹7,401.00 |
1 × ₹77.92
₹77.92
excl. GST
₹91.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIHFL9014TR-GE3
₹77.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 1.1A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.715 g
Overview
Vishay's third-generation power MOSFETs provide designers with the best combination of fast switching, rugged device design, low on-resistance, and high cost-effectiveness. The SOT-223 package is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automated pick-and-place handling like other SOT or SOIC packages, while also offering improved thermal performance due to the enlarged heatsink tab. In typical surface-mount applications, power dissipation can exceed 1.25 W.
Key features
- Surface mount
- Available in tape and reel packaging
- Dynamic dv/dt rated
- Repetitive avalanche rated
- P-channel
- Fast switching
- Easy to parallel
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFL9014TR(UMW)#C7472427UMW · SOT-223 | UMW | SOT-223 | 25 | ₹27.31 · 25 in stock | View |
 | IRFL9014TRPBF#C3054VISHAY · SOT-223 | VISHAY | SOT-223 | 11,563 | ₹59.91 · 11,563 in stock | View |
| LWS60110A23#C20630396Lewa Micro · SOT-223 | Lewa Micro | SOT-223 | 865 | ₹15.31 · 865 in stock | View | |
 | LWS6080A23#C20630402Lewa Micro · SOT-223 | Lewa Micro | SOT-223 | 1,575 | ₹19.51 · 1,575 in stock | View |
 | NDT2955#C194179onsemi · SOT-223 | onsemi | SOT-223 | 3,712 | ₹68.66 · 3,712 in stock | View |
