VISHAYDatasheet (PDF)

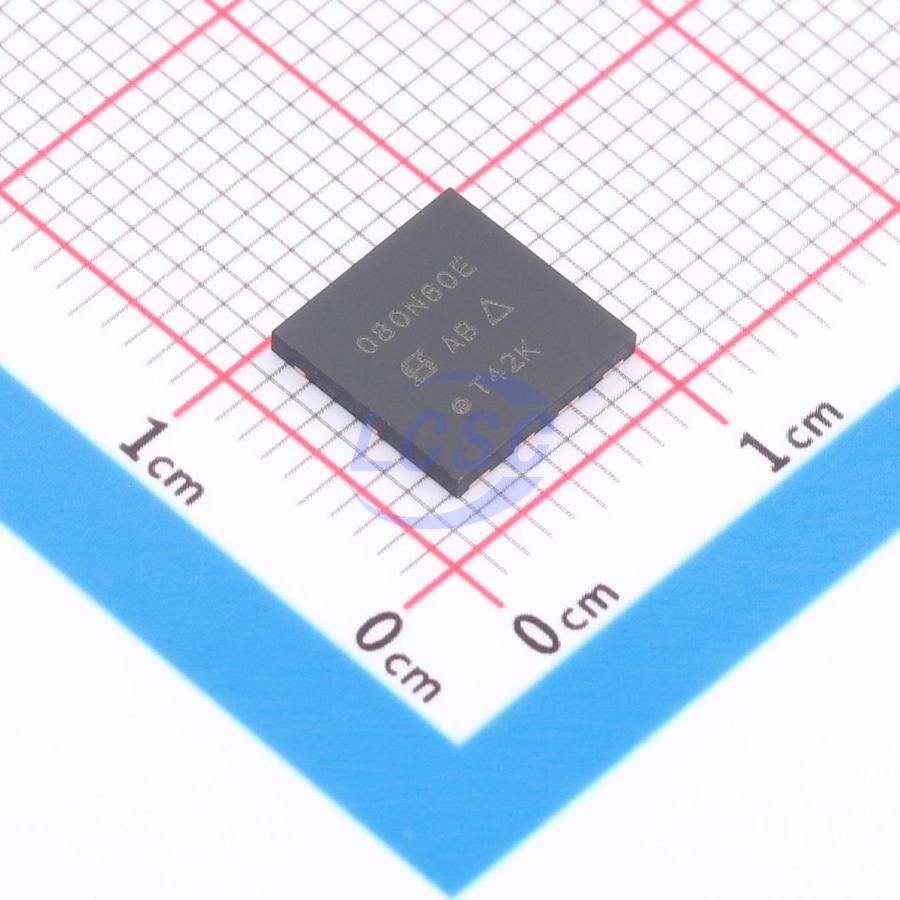

SIHH080N60E-T1-GE3
600V 20A 184W 80mΩ@10V 1 N-channel N-Channel PowerPAK(8x8) Single FETs, MOSFETs RoHS
PowerPAK(8x8)ROHS3 CompliantActive
N-Channel, Current:17A, Voltage:600V
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHH080N60E-T1-GE3
- Store part #
- C3279482
- Package / case
- PowerPAK(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C3279482
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹602.97 | ₹602.97 |
| 10+ | ₹589.30 | ₹5,893.00 |
| 30+ | ₹579.99 | ₹17,399.70 |
| 100+ | ₹570.87 | ₹57,087.00 |
1 × ₹602.97
₹602.97
excl. GST
₹711.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIHH080N60E-T1-GE3
₹602.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.557nF
- Pd - Power Dissipation
- 184W
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.533 g
Overview
Applications
- Server and Telecom Power Supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID) Lamps
- Fluorescent Lamp Ballast Lighting
- Industrial Applications
- Welding
- Induction Heating
- Motor Drives
- Battery Chargers
- Solar (Photovoltaic Inverters)
Key features
- 4th Generation E-Series Technology
- Low Figure of Merit (FOM) R<sub>on</sub> × Q<sub>g</sub>
- Low Effective Capacitance C<sub>o(er)</sub>
- Reduced Switching and Conduction Losses
- Avalanche Energy Rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SIHH125N60EF-T1GE3#C3279477VISHAY · PowerPAK(8x8) | VISHAY | PowerPAK(8x8) | On request | ₹549.12 · 0 in stock | View | |
| SIHH24N65E-T1-GE3#C3279474VISHAY · PowerPAK(8x8) | VISHAY | PowerPAK(8x8) | On request | ₹656.10 · 0 in stock | View | |
| SIHH21N65EF-T1-GE3#C3279475VISHAY · PowerPAK(8x8) | VISHAY | PowerPAK(8x8) | On request | ₹589.75 · 0 in stock | View | |
 | SIHH180N60E-T1-GE3#C499602VISHAY · PowerPAK(8x8) | VISHAY | PowerPAK(8x8) | On request | ₹184.04 · 0 in stock | View |
