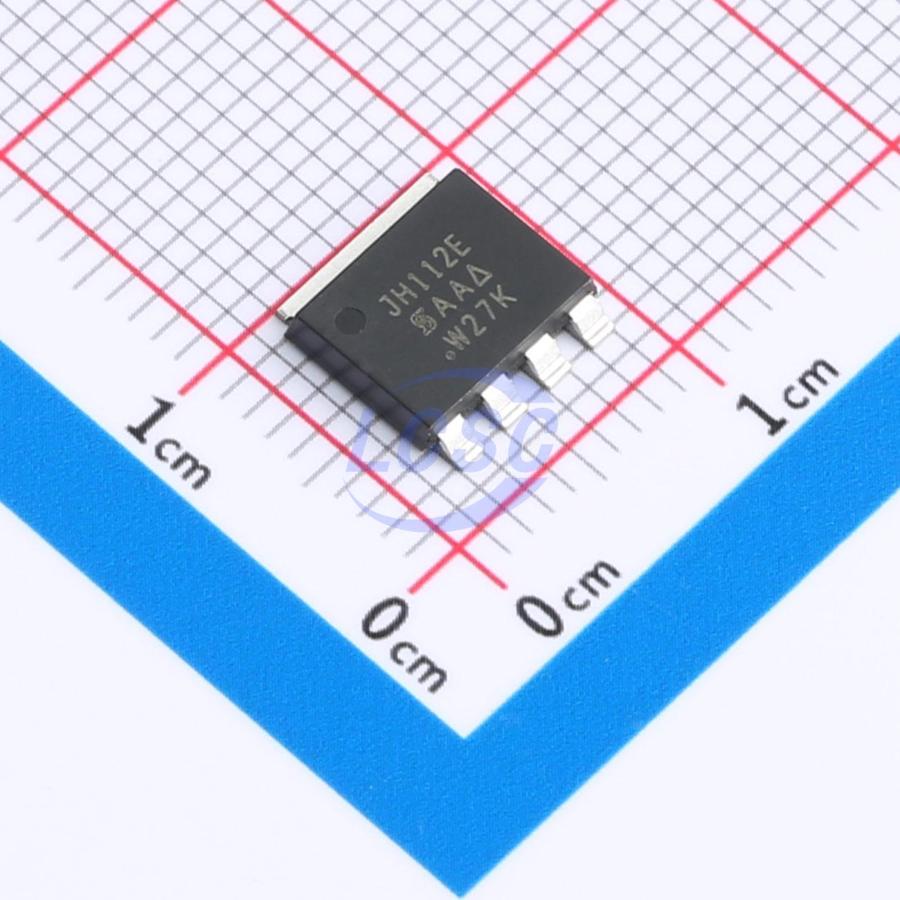

SIJH112E-T1-GE3
N-Channel 100V 225A 333W PowerPAK-5(8x8)
PowerPAK-5(8x8)ROHS CompliantActive
MOSFET N-CH 100V 225A PowerPAK-5(8x8)
- Manufacturer
- VISHAY
- Manufacturer part #
- SIJH112E-T1-GE3
- Store part #
- C3279480
- Package / case
- PowerPAK-5(8x8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C3279480
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹458.72 | ₹458.72 |
| 10+ | ₹448.07 | ₹4,480.70 |
| 30+ | ₹440.90 | ₹13,227.00 |
| 100+ | ₹433.73 | ₹43,373.00 |
1 × ₹458.72
₹458.72
excl. GST
₹541.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SIJH112E-T1-GE3
₹458.72 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 225A
- Ciss-Input Capacitance
- 8.05nF
- Pd - Power Dissipation
- 333W
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 3.6mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 160nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Synchronous rectification
- OR - ing
- Motor drive control
- Battery management
Key features
- TrenchFET Gen IV power MOSFET
- Fully lead (Pb)-free device
- Low Qg, Qgd, and Qgd/Qgs ratio
- RoHS HALOGEN FREE
- Up to 200 A maximum continuous drain current
- 50% smaller footprint than D2PAK (TO - 263)
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQJQ112E-T1_GE3#C3289447VISHAY · PowerPAK-5(8x8) | VISHAY | PowerPAK-5(8x8) | 5 | ₹878.78 · 5 in stock | View |
