VISHAYDatasheet (PDF)

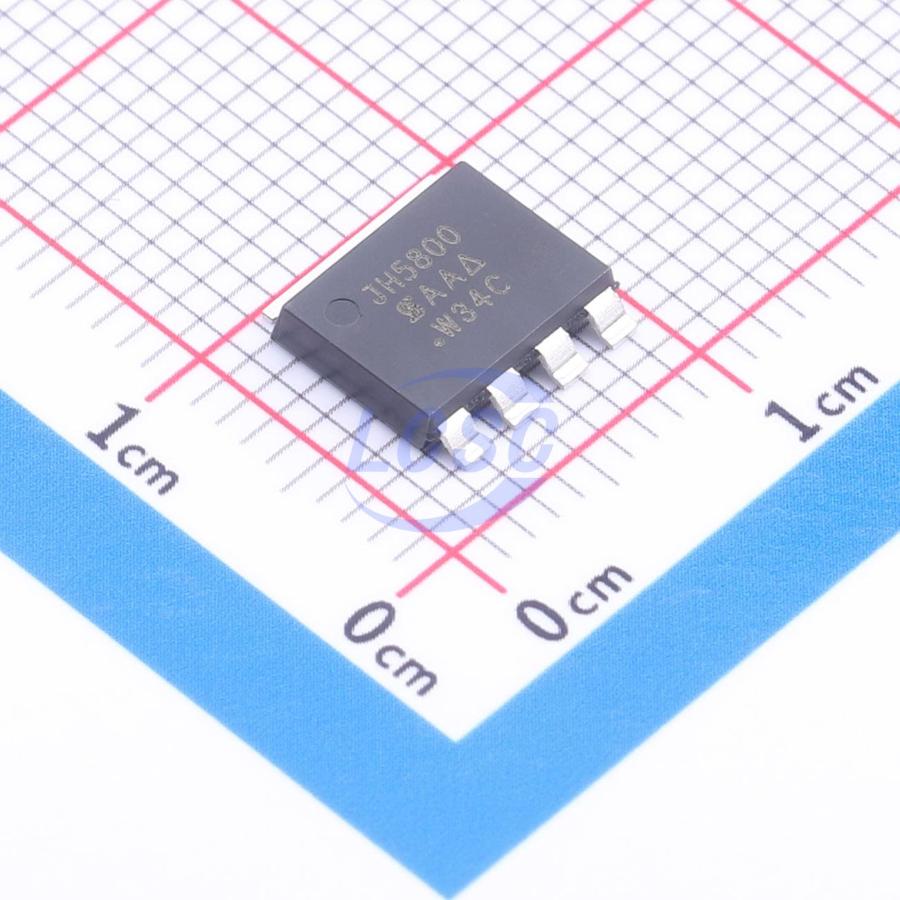

SIJH5800E-T1-GE3
80V 1.35mΩ@10V 1 N-channel PowerPAK8x8L Single FETs, MOSFETs RoHS
PowerPAK8x8LROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIJH5800E-T1-GE3
- Store part #
- C7011053
- Package / case
- PowerPAK8x8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C7011053
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,323.38 | ₹1,323.38 |
| 10+ | ₹1,305.75 | ₹13,057.50 |
| 30+ | ₹1,294.15 | ₹38,824.50 |
| 100+ | ₹1,282.33 | ₹1,28,233.00 |
1 × ₹1,323.38
₹1,323.38
excl. GST
₹1,561.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SIJH5800E-T1-GE3
₹1,323.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 30A;302A
- Ciss-Input Capacitance
- 7.73nF
- Pd - Power Dissipation
- 3.3W;333W
- RDS(on)
- 1.35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 155nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.933 g
Overview
Applications
- Synchronous rectification
- OR-gate function
- Motor drive control
- Battery management
Key features
- 5th Generation TrenchFET Power MOSFET
- Fully Pb-Free Device
- Ultra-Low RDS × Qg Figure of Merit (FOM)
- Maximum Continuous Drain Current up to 302 A
- 50% Smaller Footprint than D2PAK (TO-263)
- 100% Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SQJQ184E-T1_GE3#C6297740VISHAY · PowerPAK8x8L | VISHAY | PowerPAK8x8L | On request | ₹296.97 · 0 in stock | View | |
