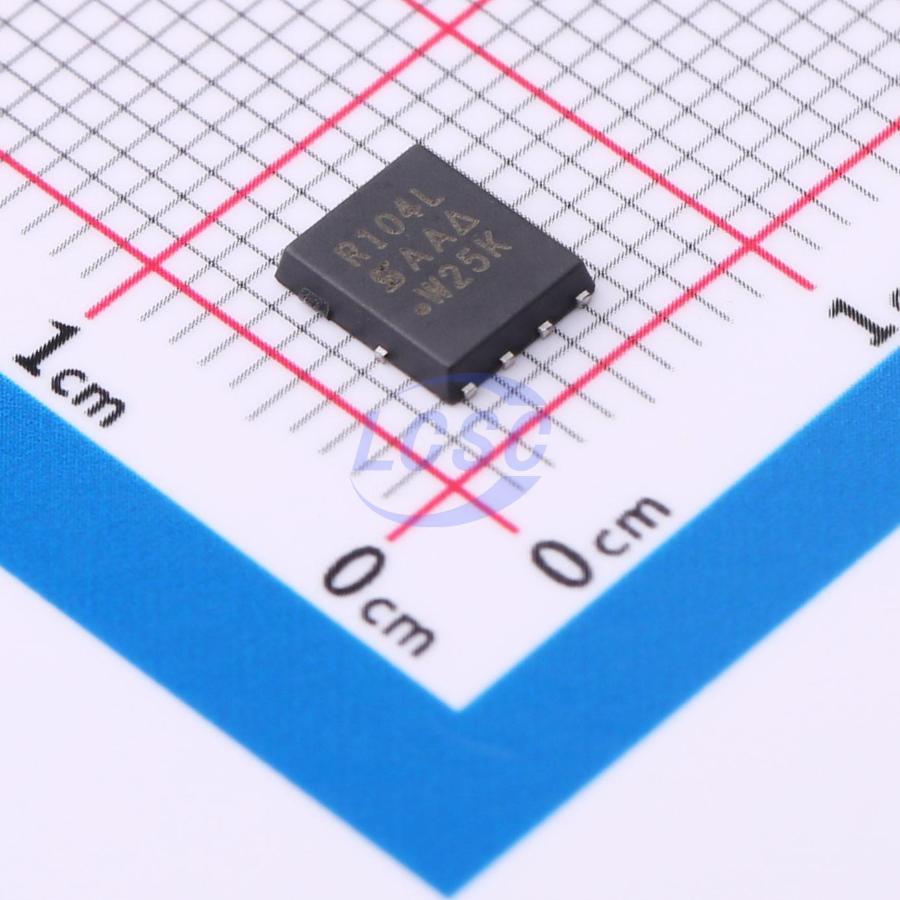

SIR104LDP-T1-RE3
N-Channel 100V 81A 100W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 100V 81A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR104LDP-T1-RE3
- Store part #
- C3289512
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3289512
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹258.59 | ₹258.59 |
| 10+ | ₹217.95 | ₹2,179.50 |
| 30+ | ₹192.54 | ₹5,776.20 |
| 100+ | ₹166.23 | ₹16,623.00 |
| 500+ | ₹154.50 | ₹77,250.00 |
| 1,000+ | ₹149.51 | ₹1,49,510.00 |
1 × ₹258.59
₹258.59
excl. GST
₹305.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR104LDP-T1-RE3
₹258.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 338pF
- Current - Continuous Drain(Id)
- 81A
- Ciss-Input Capacitance
- 4.87nF
- Pd - Power Dissipation
- 100W
- Reverse Transfer Capacitance (Crss)
- 19pF
- RDS(on)
- 7.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converters
- Power supplies
- Motor drive control
- Battery and load switch
Key features
- RoHS COMPLIANT HALOGEN FREE
- TrenchFET Gen IV power MOSFET
- Very low RDS×Qg figure-of-merit (FOM)
- Tuned for the lowest RDS×Qoss FOM
- 100 % Rg and UIS tested
