VISHAYDatasheet (PDF)

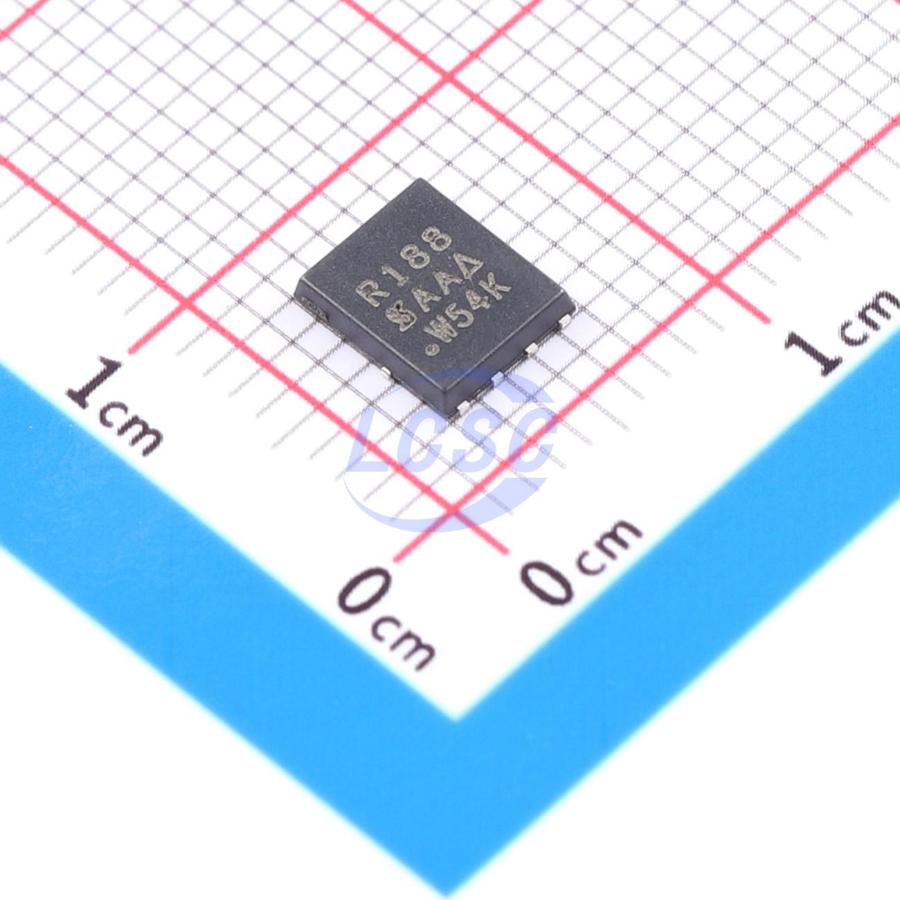

SIR188DP-T1-RE3
N-Channel 60V 60A 65.7W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 60V 60A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR188DP-T1-RE3
- Store part #
- C3279549
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C3279549
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹286.81 | ₹286.81 |
| 10+ | ₹280.53 | ₹2,805.30 |
| 30+ | ₹276.40 | ₹8,292.00 |
| 100+ | ₹272.29 | ₹27,229.00 |
1 × ₹286.81
₹286.81
excl. GST
₹338.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR188DP-T1-RE3
₹286.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 530pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 65.7W
- Reverse Transfer Capacitance (Crss)
- 26pF
- RDS(on)
- 4.9mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Motor drive switch
Key features
- RoHS COMPLIANT HALOGEN FREE
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure - of - merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6048A#C45385121HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 122 | ₹84.63 · 122 in stock | View |
 | MS0002Y#C17702012MIRACLE POWER · PDFN5x6-8L | MIRACLE POWER | PDFN5x6-8L | 325 | ₹42.75 · 325 in stock | View |
 | BSC039N06NS#C534330Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 391 | ₹162.74 · 391 in stock | View |
 | AUN084N10#C5440026ANHI · DFN-8(5x6) | ANHI | DFN-8(5x6) | 1,085 | ₹78.24 · 1,085 in stock | View |
 | FH1610GS#C22396954XIN FEI HONG · PDFN-8L(5x6) | XIN FEI HONG | PDFN-8L(5x6) | 4,785 | ₹39.82 · 4,785 in stock | View |
