VISHAYDatasheet (PDF)

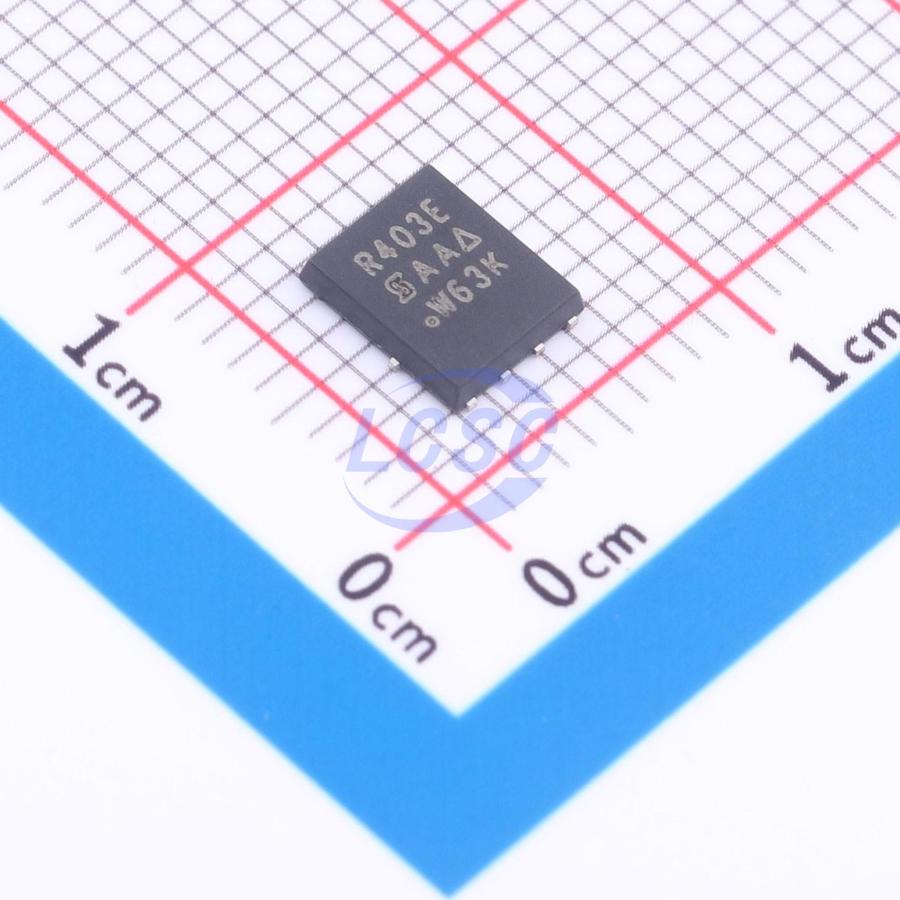

SIR403EDP-T1-GE3
30V 21.9A 6.5mΩ@10V 1 P-Channel P-Channel PowerPAK-SO-8 Single FETs, MOSFETs RoHS
PowerPAK-SO-8ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR403EDP-T1-GE3
- Store part #
- C727654
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C727654
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.55 | ₹88.55 |
| 10+ | ₹86.38 | ₹863.80 |
| 30+ | ₹85.08 | ₹2,552.40 |
| 100+ | ₹83.77 | ₹8,377.00 |
1 × ₹88.55
₹88.55
excl. GST
₹104.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR403EDP-T1-GE3
₹88.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 880pF
- Ciss-Input Capacitance
- 4.62nF
- Pd - Power Dissipation
- 5W;56.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 21.9A
- Reverse Transfer Capacitance (Crss)
- 820pF
- RDS(on)
- 6.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 153nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
Applications
- Adapter switches, load switches
- Power management
- Notebooks and portable battery packs
Key features
- Extended VGS range (±25V) for adapter switching applications
- Ultra-low RDS(on)
- TrenchFET power MOSFET
- 100% Rg and UIS tested
- Typical ESD performance: 4000V (HBM)
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SP30P08NK#C41355015Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 3,985 | ₹33.11 · 3,985 in stock | View | |
 | SI7149DP-T1-GE3#C553982VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 10,228 | ₹98.81 · 10,228 in stock | View |
 | AON6405-VB#C693296VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 16 | ₹104.60 · 16 in stock | View |
 | SM4307PSKPC-TRG-VB#C7463676VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 12 | ₹116.05 · 12 in stock | View |
 | CJAC100P03#C504076JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 4,904 | ₹74.83 · 4,904 in stock | View |
