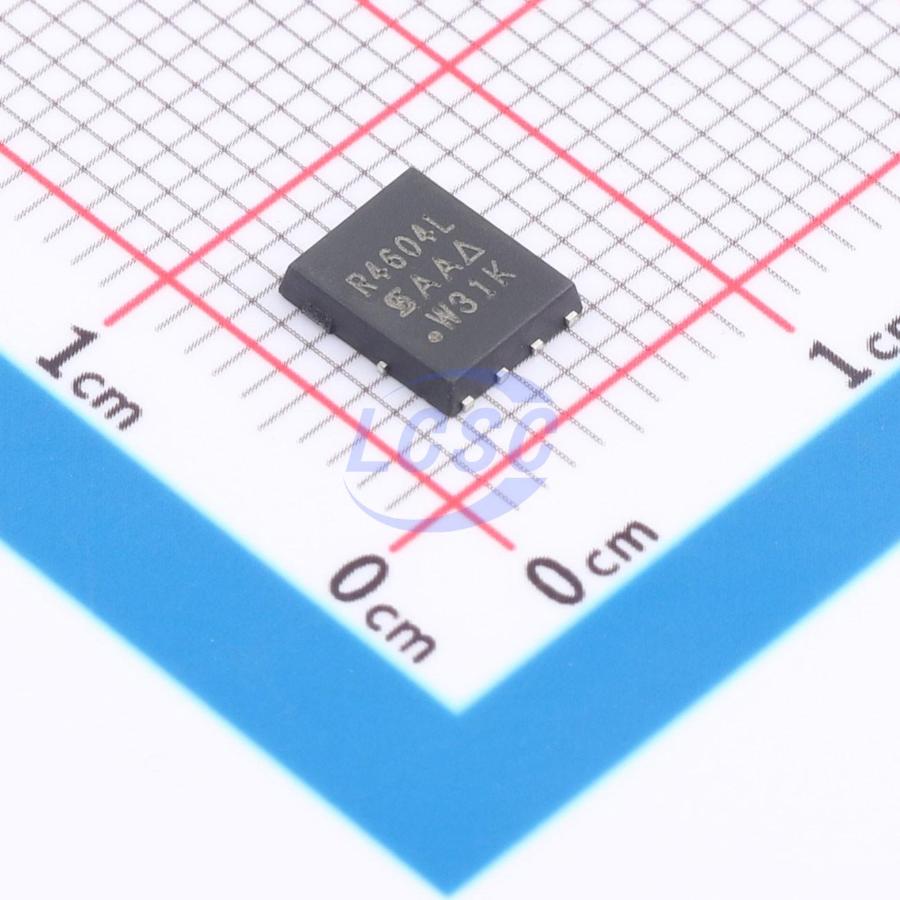

SIR4604LDP-T1-GE3
60V 51A 3.9W 8.9mΩ@10V 1 N-channel PowerPAKSO-8 Single FETs, MOSFETs RoHS
PowerPAKSO-8ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR4604LDP-T1-GE3
- Store part #
- C5754022
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C5754022
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹265.46 | ₹265.46 |
| 10+ | ₹228.92 | ₹2,289.20 |
| 30+ | ₹208.72 | ₹6,261.60 |
| 100+ | ₹185.92 | ₹18,592.00 |
| 500+ | ₹175.83 | ₹87,915.00 |
| 1,000+ | ₹171.10 | ₹1,71,100.00 |
1 × ₹265.46
₹265.46
excl. GST
₹313.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR4604LDP-T1-GE3
₹265.46 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 51A
- Ciss-Input Capacitance
- 1.18nF
- Pd - Power Dissipation
- 3.9W
- RDS(on)
- 8.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.57 g
Overview
Applications
- Synchronous rectification
- Primary-side switching
- DC-DC converters
- OR-gate function
- Power supplies
- Motor drive control
- Battery and load switching
Key features
- TrenchFET 4th Generation Power MOSFET
- Ultra-low RDS × Qg figure of merit (FOM)
- Optimized for lowest RDS × Qoss FOM
- 100% Rg and UIS tested
