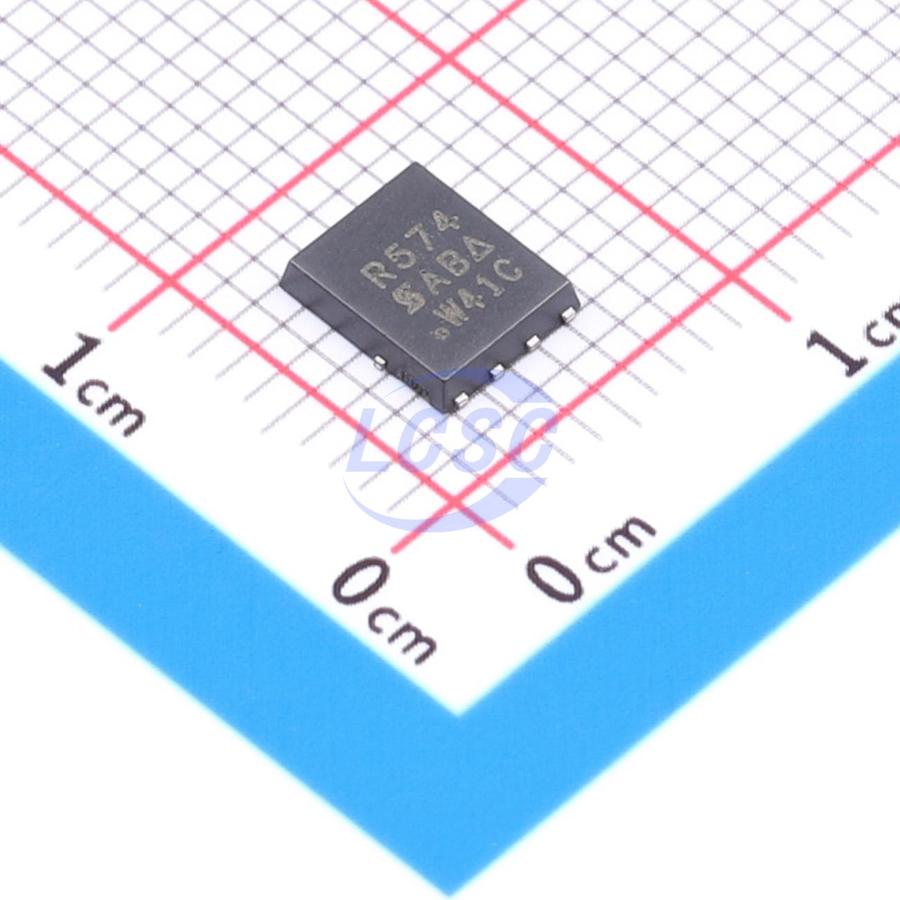

SIR574DP-T1-RE3
N-Channel 150V 48.1A 11.25W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS CompliantActive
MOSFET N-CH 150V 48.1A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR574DP-T1-RE3
- Store part #
- C3289465
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C3289465
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.38 | ₹145.38 |
| 10+ | ₹142.12 | ₹1,421.20 |
| 30+ | ₹139.72 | ₹4,191.60 |
| 100+ | ₹137.55 | ₹13,755.00 |
1 × ₹145.38
₹145.38
excl. GST
₹171.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR574DP-T1-RE3
₹145.38 for 1 + GST
Specifications
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 48.1A
- Ciss-Input Capacitance
- 2.3nF
- Pd - Power Dissipation
- 11.25W
- Reverse Transfer Capacitance (Crss)
- 31.5pF
- RDS(on)
- 14.3mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converters
- Power supplies
- Motor drive control
Key features
- TrenchFET Gen V power MOSFET
- Very low RDS×Qg figure-of-merit (FOM)
- Tuned for the lowest RDS×Qoss FOM
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA1504#C54842104HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 262 | ₹128.62 · 262 in stock | View |
 | LN7910DT1WG#C2936692LRC · DFN-8(5x6) | LRC | DFN-8(5x6) | 1,461 | ₹163.59 · 1,461 in stock | View |
 | IRFH5015TRPBF-TP#C49374626TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 466 | ₹90.19 · 466 in stock | View |
 | FDMS2572-TP#C49374627TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 435 | ₹90.19 · 435 in stock | View |
 | SI7738DP-TP#C49374628TECH PUBLIC · PDFN-8(5x6) | TECH PUBLIC | PDFN-8(5x6) | 332 | ₹90.19 · 332 in stock | View |
