VISHAYDatasheet (PDF)

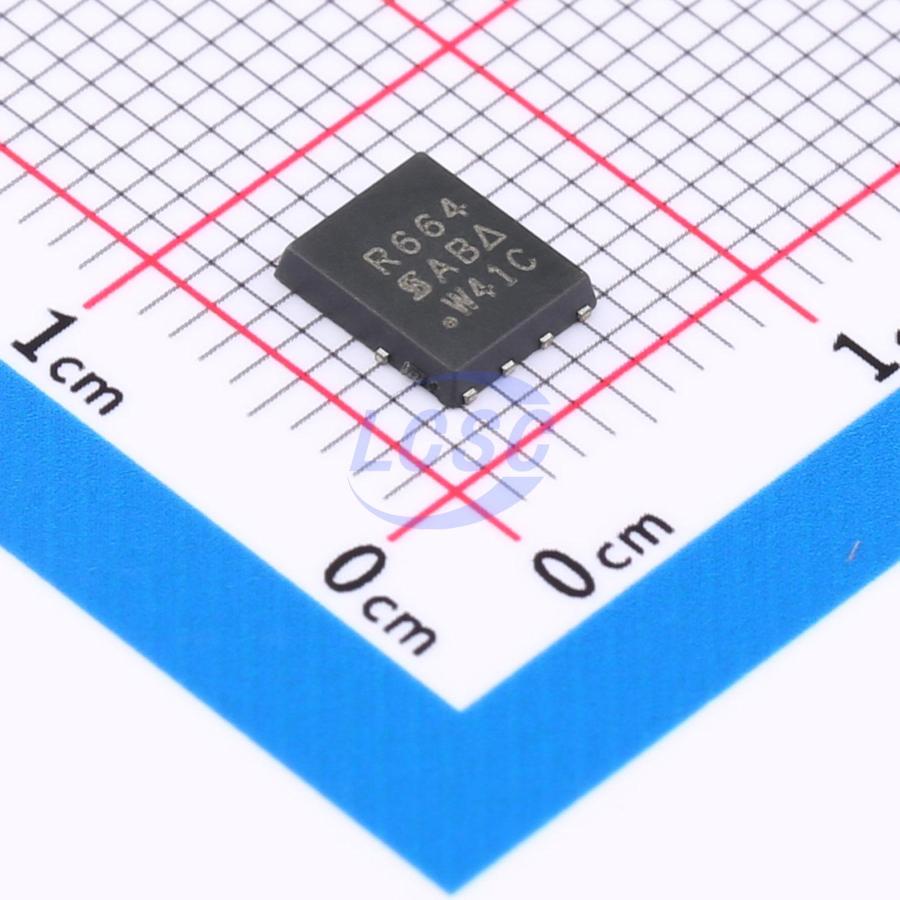

SIR664DP-T1-GE3
60V 60A 32W 6mΩ@10V 1 N-channel N-Channel PowerPAKSO-8 Single FETs, MOSFETs RoHS
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 60V 60A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR664DP-T1-GE3
- Store part #
- C5754026
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C5754026
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.48 | ₹167.48 |
| 10+ | ₹139.25 | ₹1,392.50 |
| 30+ | ₹123.59 | ₹3,707.70 |
| 100+ | ₹106.01 | ₹10,601.00 |
| 500+ | ₹98.19 | ₹49,095.00 |
| 1,000+ | ₹94.71 | ₹94,710.00 |
1 × ₹167.48
₹167.48
excl. GST
₹197.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR664DP-T1-GE3
₹167.48 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 720pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.75nF
- Pd - Power Dissipation
- 32W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.177 g
Overview
Applications
- Primary-side switching
- Synchronous rectification
- DC/DC converter
- Boost converter
- DC/AC inverter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6064#C53244011HUASHUO · PRPAK-8(5x6) | HUASHUO | PRPAK-8(5x6) | 2,085 | ₹41.03 · 2,085 in stock | View |
 | SFS08R07GF#C5175407ORIENTAL SEMI · PDFN5x6-8 | ORIENTAL SEMI | PDFN5x6-8 | 3,910 | ₹44.25 · 3,910 in stock | View |
 | DON90N06T#C48934552DOINGTER · DFN5x6-8 | DOINGTER | DFN5x6-8 | 345 | ₹32.10 · 345 in stock | View |
 | MOT6142G#C33129541MOT · PDFN5X6-8L | MOT | PDFN5X6-8L | 5,570 | ₹32.37 · 5,570 in stock | View |
 | CMSA055DN06AU#C51793176Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 88 | ₹133.45 · 88 in stock | View |
