VISHAYDatasheet (PDF)

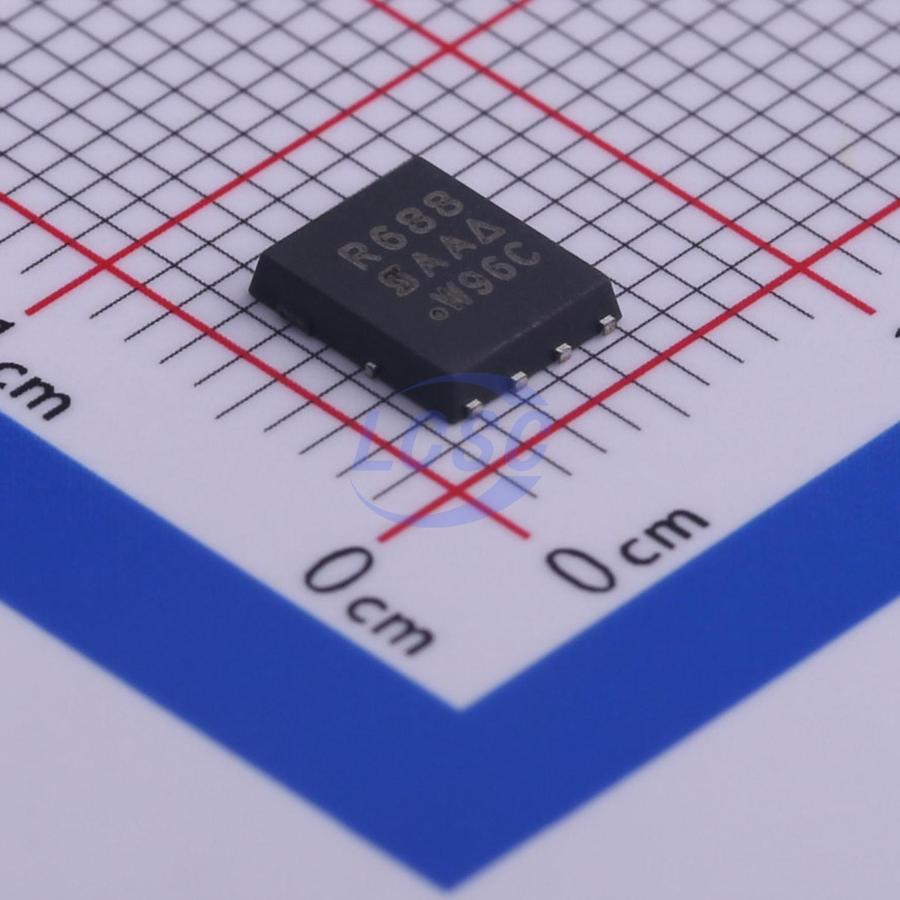

SIR688DP-T1-GE3
5.4W 60V 29.2A 3.5mΩ@10V 1 N-channel N-Channel PowerPAK-SO-8 Single FETs, MOSFETs RoHS
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 60V 29.2A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR688DP-T1-GE3
- Store part #
- C467947
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C467947
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹600.18 | ₹600.18 |
| 10+ | ₹513.69 | ₹5,136.90 |
| 30+ | ₹462.19 | ₹13,865.70 |
| 100+ | ₹410.26 | ₹41,026.00 |
| 500+ | ₹386.14 | ₹1,93,070.00 |
| 1,000+ | ₹375.49 | ₹3,75,490.00 |
1 × ₹600.18
₹600.18
excl. GST
₹708.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR688DP-T1-GE3
₹600.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.345nF
- Ciss-Input Capacitance
- 3.105nF
- Pd - Power Dissipation
- 5.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 29.2A
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Applications
- Primary-side switch
- Synchronous rectifier
- DC/DC converter
- DC/AC inverter
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- 100% Rg and UIS tested
- Low Qg for high efficiency
- Material category: RoHS compliant, halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIR880DP-VB#C20755716VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 52 | ₹264.07 · 52 in stock | View |
 | VBQA1806#C7429160VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹223.71 · 10 in stock | View |
 | FDMS039N08B-VB#C7463901VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 81 | ₹277.38 · 81 in stock | View |
| BMO10N380#C52993701BORN · PDFN-8(5x6) | BORN | PDFN-8(5x6) | 1,827 | ₹80.60 · 1,827 in stock | View | |
 | FDMS86540#C606114onsemi · Power56-8 | onsemi | Power56-8 | 4 | ₹151.59 · 4 in stock | View |
