HXY MOSFETDatasheet (PDF)

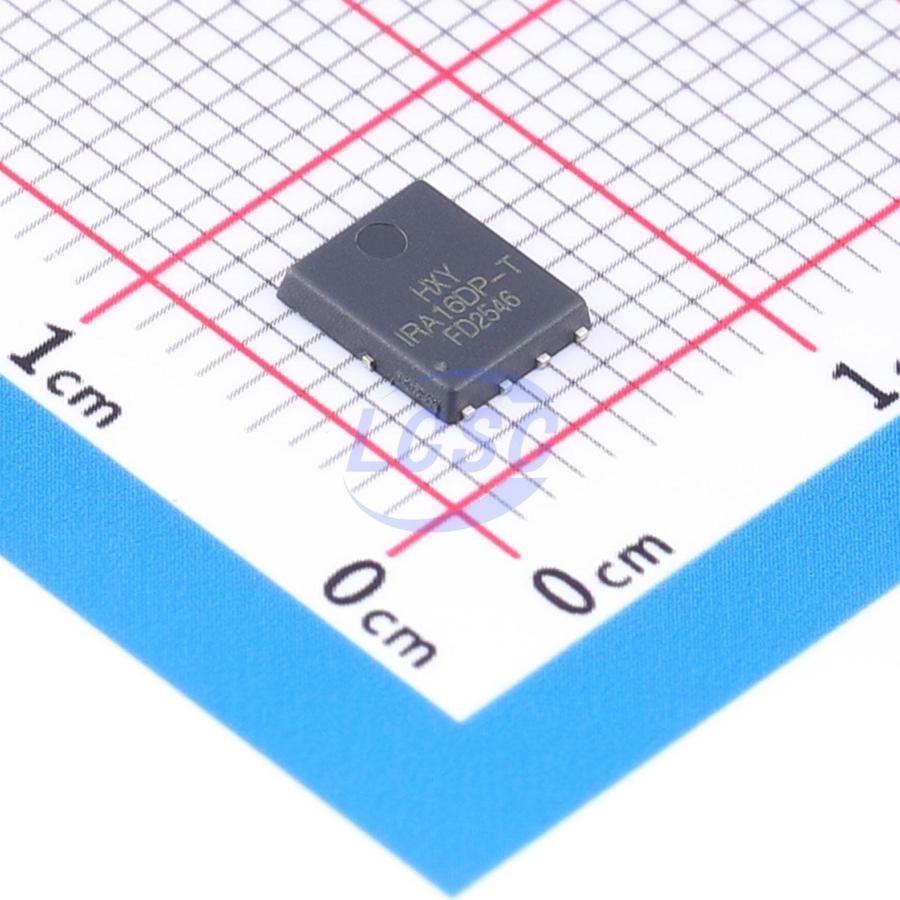

SIRA16DP-T1-GE3-HXY
59W 30V 60A 5.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SIRA16DP-T1-GE3-HXY
- Store part #
- C53263259
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53263259
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.06 | ₹88.06 |
| 10+ | ₹72.17 | ₹721.70 |
| 30+ | ₹64.22 | ₹1,926.60 |
| 100+ | ₹56.49 | ₹5,649.00 |
| 500+ | ₹51.77 | ₹25,885.00 |
| 1,000+ | ₹49.40 | ₹49,400.00 |
1 × ₹88.06
₹88.06
excl. GST
₹103.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIRA16DP-T1-GE3-HXY
₹88.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 2.295nF
- Pd - Power Dissipation
- 59W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 5.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA88DP-T1-GE3-HXY#C53262977HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 85 | ₹44.04 · 85 in stock | View |
 | SIRA18BDP-T1-GE3-HXY#C53262992HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 90 | ₹27.99 · 90 in stock | View |
 | SIRA88BDP-T1-GE3-HXY#C53263021HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 90 | ₹47.85 · 90 in stock | View |
 | FDMS7680-HXY#C53263027HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 93 | ₹63.80 · 93 in stock | View |
 | CSD17578Q5AT-HXY#C53263035HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹120.49 · 98 in stock | View |
