VISHAYDatasheet (PDF)

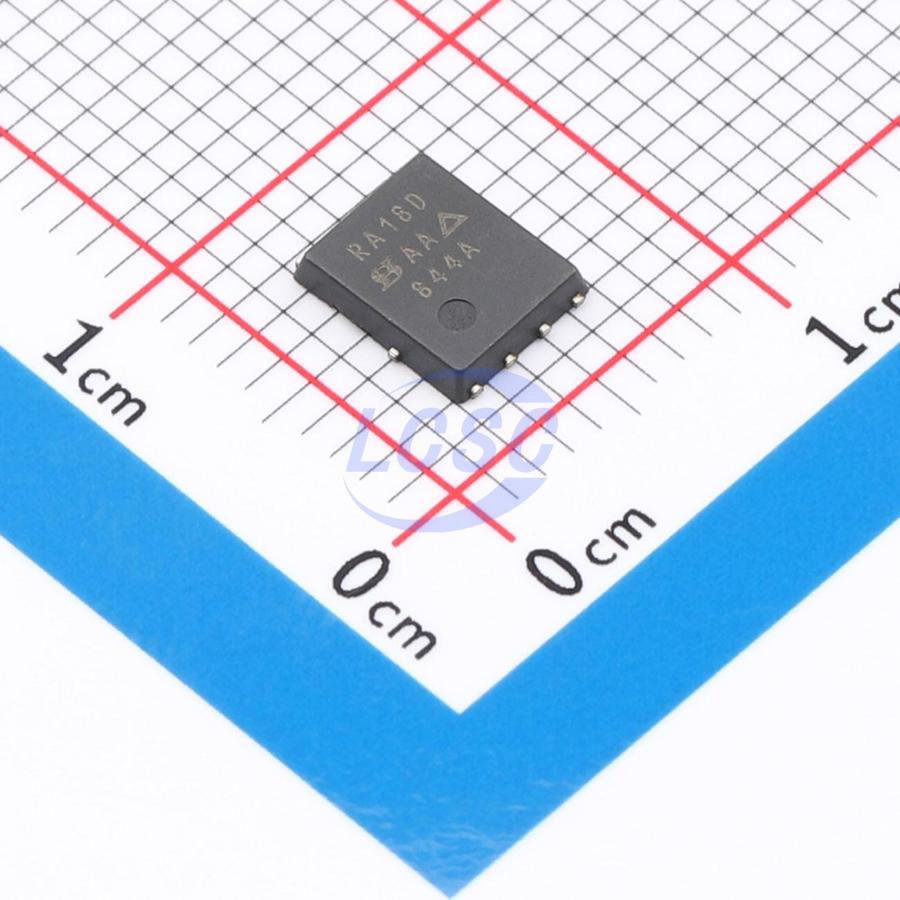

SIRA18DDP-T1-GE3
30V 40A 17W 6.83mΩ@10V 1 N-channel N-Channel PowerPAKSO-8 Single FETs, MOSFETs RoHS
PowerPAKSO-8ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA18DDP-T1-GE3
- Store part #
- C27622483
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C27622483
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.65 | ₹76.65 |
| 10+ | ₹63.41 | ₹634.10 |
| 30+ | ₹57.76 | ₹1,732.80 |
| 100+ | ₹50.60 | ₹5,060.00 |
| 500+ | ₹47.56 | ₹23,780.00 |
| 1,000+ | ₹45.60 | ₹45,600.00 |
1 × ₹76.65
₹76.65
excl. GST
₹90.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIRA18DDP-T1-GE3
₹76.65 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 266pF
- Ciss-Input Capacitance
- 670pF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 6.83mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Applications
- High power density DC/DC conversion
- Synchronous rectification
- Power conversion
- Load switching
Key features
- Trench FET 4th generation power MOSFET
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA18BDP-T1-GE3#C3289477VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 2,055 | ₹55.51 · 2,055 in stock | View |
 | SIRA88DP-T1-GE3#C727319VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 1 | ₹31.32 · 1 in stock | View |
| S60V04F#C53134302HL · PDFN-8L(5x6) | HL | PDFN-8L(5x6) | 4,900 | ₹26.25 · 4,900 in stock | View | |
 | BSC065N06LS5#C534360Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 89 | ₹202.95 · 89 in stock | View |
 | SFS08R07GF#C5175407ORIENTAL SEMI · PDFN5x6-8 | ORIENTAL SEMI | PDFN5x6-8 | 3,910 | ₹44.25 · 3,910 in stock | View |
