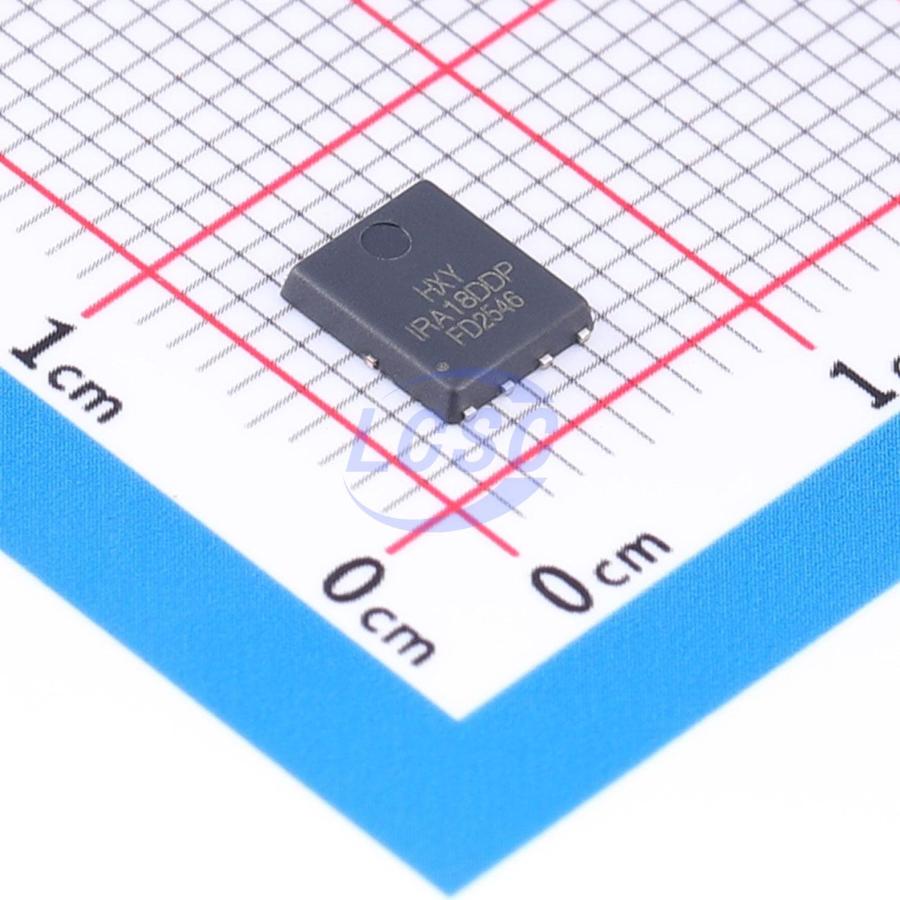

SIRA18DDP-T1-GE3-HXY
59W 30V 60A 5.7mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SIRA18DDP-T1-GE3-HXY
- Store part #
- C53263167
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C53263167
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.59 | ₹222.95 |
| 50+ | ₹35.71 | ₹1,785.50 |
| 150+ | ₹31.91 | ₹4,786.50 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 2,500+ | ₹25.04 | ₹62,600.00 |
| 5,000+ | ₹23.79 | ₹1,18,950.00 |
5 × ₹44.59
₹222.95
excl. GST
₹263.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIRA18DDP-T1-GE3-HXY
₹222.95 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 267pF
- Ciss-Input Capacitance
- 2.295nF
- Pd - Power Dissipation
- 59W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 5.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA88DP-T1-GE3-HXY#C53262977HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 85 | ₹44.04 · 85 in stock | View |
 | SIRA18BDP-T1-GE3-HXY#C53262992HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 90 | ₹27.99 · 90 in stock | View |
 | SIRA88BDP-T1-GE3-HXY#C53263021HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 90 | ₹47.85 · 90 in stock | View |
 | FDMS7680-HXY#C53263027HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 93 | ₹63.80 · 93 in stock | View |
 | CSD17578Q5AT-HXY#C53263035HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹120.49 · 98 in stock | View |
