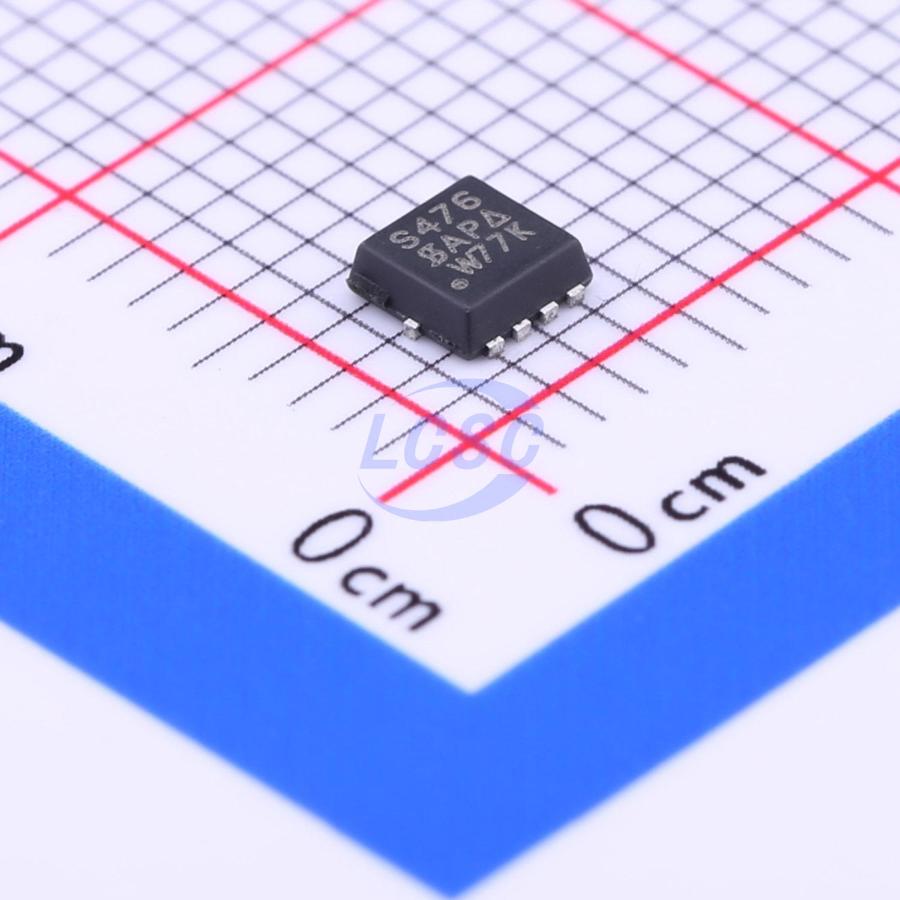

SIS476DN-T1-GE3
N-Channel 30V 409A 52W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 409A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIS476DN-T1-GE3
- Store part #
- C269267
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C269267
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹455.46 | ₹455.46 |
| 10+ | ₹406.66 | ₹4,066.60 |
| 30+ | ₹375.93 | ₹11,277.90 |
| 100+ | ₹344.76 | ₹34,476.00 |
| 500+ | ₹330.58 | ₹1,65,290.00 |
| 1,000+ | ₹324.35 | ₹3,24,350.00 |
1 × ₹455.46
₹455.46
excl. GST
₹537.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIS476DN-T1-GE3
₹455.46 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.04nF
- Ciss-Input Capacitance
- 3.595nF
- Pd - Power Dissipation
- 52W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 409A
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 3.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 77nC@10V
- Vgs
- -16V;20V
- Gate Threshold Voltage (Vgs(th))
- 2.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
Applications
- Switch Mode Power Supplies
- Personal Computers and Servers
- Telecom Bricks
- VRM’s and POL
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Gen IV Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB3072#C2903562HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 890 | ₹55.59 · 890 in stock | View |
 | IRL7472L1TRPBF#C538140Infineon · WHSON-8(3.3x3.3) | Infineon | WHSON-8(3.3x3.3) | 122 | ₹463.57 · 122 in stock | View |
