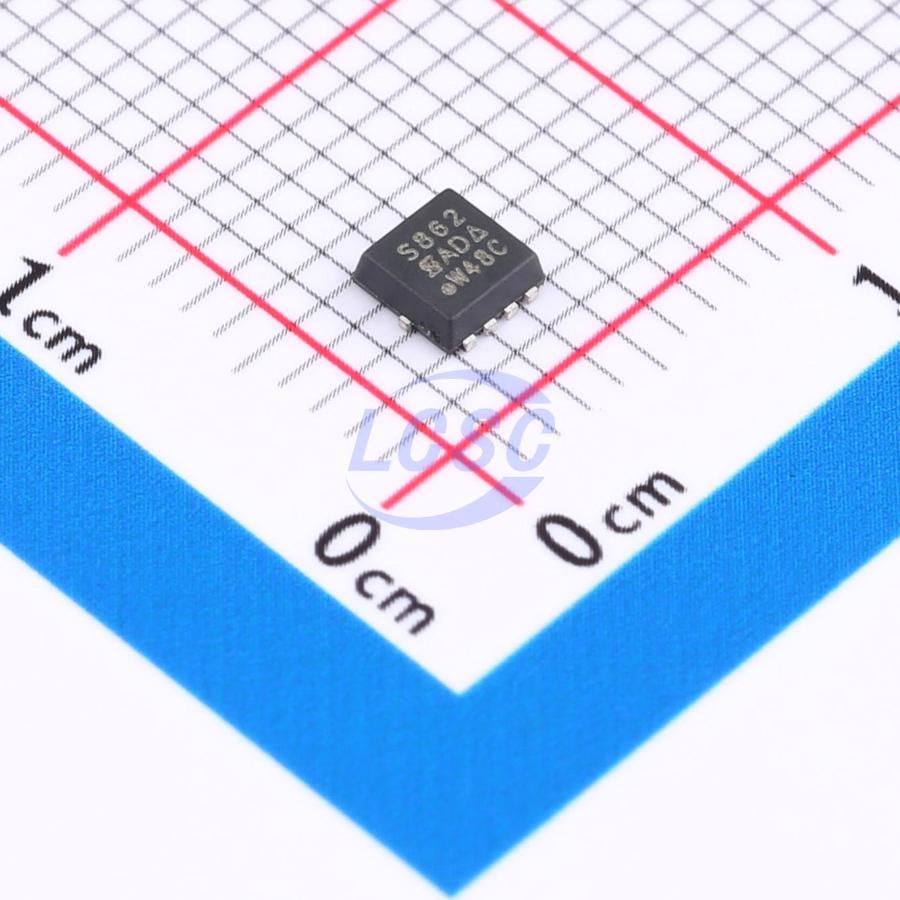

SIS862DN-T1-GE3
N-Channel 60V 40A 52W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 60V 40A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIS862DN-T1-GE3
- Store part #
- C7316367
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C7316367
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.46 | ₹253.46 |
| 10+ | ₹217.91 | ₹2,179.10 |
| 30+ | ₹198.61 | ₹5,958.30 |
| 100+ | ₹176.49 | ₹17,649.00 |
| 500+ | ₹166.74 | ₹83,370.00 |
| 1,000+ | ₹162.40 | ₹1,62,400.00 |
1 × ₹253.46
₹253.46
excl. GST
₹299.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIS862DN-T1-GE3
₹253.46 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 545pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.32nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 12.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
Applications
- Primary Side Switch
- Synchronous Rectification DC/DC Converters
- Boost Converters DC/AC Inverters
Key features
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
- Capable of Operating with 5 V Gate Drive
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMSC130N10#C45385349Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 450 | ₹34.48 · 450 in stock | View |
 | YJQ53G06AQ#C20605931YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 1,950 | ₹64.09 · 1,950 in stock | View |
 | FDMC007N08LCDC#C890917onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 10 | ₹409.61 · 10 in stock | View |
 | SIS862ADN-T1-GE3#C3289417VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 150 | ₹170.47 · 150 in stock | View |
 | AGM6014AP#C6719405AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 7,385 | ₹58.71 · 7,385 in stock | View |
