SuntekDatasheet (PDF)

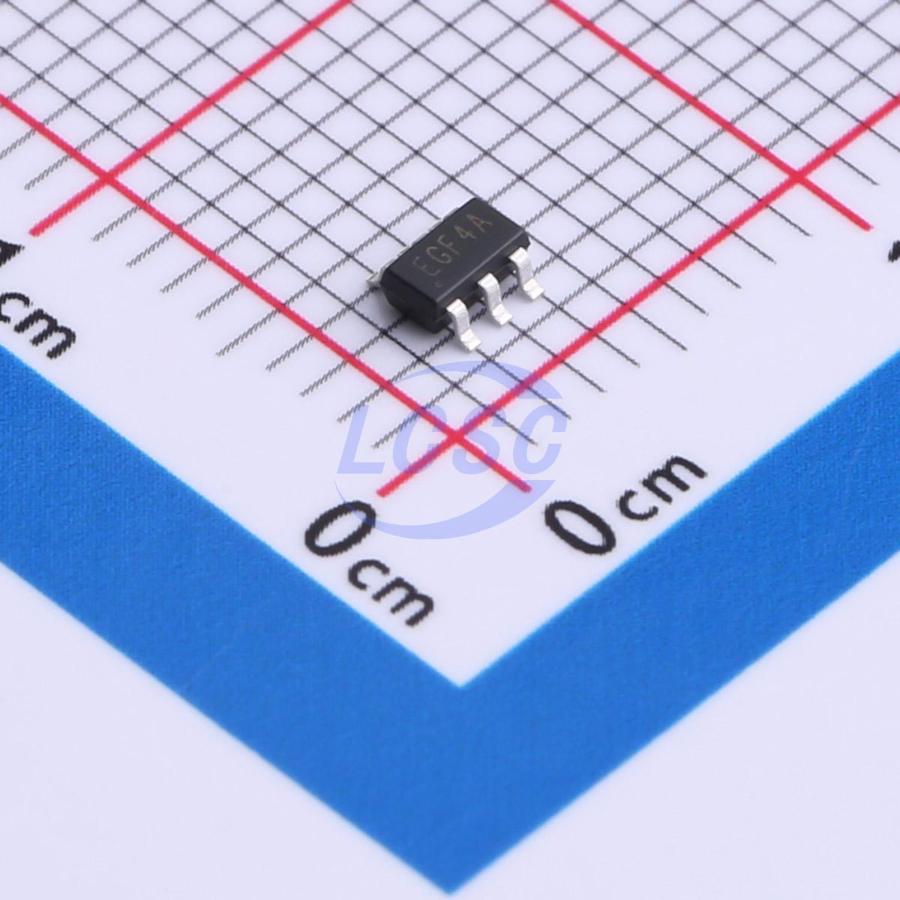

SK6253B
500kHz Step-down type Adjustable 765mV~7V 3A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
16V 3A 500KHz Sync Step-Down Regulator
- Manufacturer
- Suntek
- Manufacturer part #
- SK6253B
- Store part #
- C5120320
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,212 in stock
#C5120320
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.81 | ₹32.81 |
| 10+ | ₹28.78 | ₹287.80 |
| 30+ | ₹27.06 | ₹811.80 |
| 100+ | ₹24.90 | ₹2,490.00 |
| 500+ | ₹23.95 | ₹11,975.00 |
| 1,000+ | ₹23.36 | ₹23,360.00 |
1 × ₹32.81
₹32.81
excl. GST
₹38.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SK6253B
₹32.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~16V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 765mV~7V
- Output Current
- 3A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The SK6253B is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation. The SK6253B requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
Applications
- Digital Set-top Box (STB)
- Tablet Personal Computer (Pad)
- Flat-Panel Television and Monitor
- Wi-Fi Router / AP
- Digital Video Recorder (DVR)
- Portable Media Player (PMP)
- Cable Modem / XDSL General Purposes
Key features
- Wide 4.5V to 16V Operating Input Range
- 3A Continuous Output Current
- 500KHz Switching Frequency
- ECOT Mode Control with Fast Transient Response
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Continuous Conduction Mode (CCM)
- Internal Soft-Start
- 70mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.765V
- No Schottky Diode Required
- Short Protection with Hiccup-Mode
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT23-6 Package
- -40°C to +85°C Temperature Range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK6693#C2986193Suntek · SOT-23-6 | Suntek | SOT-23-6 | On request | Price on request | Quote |
