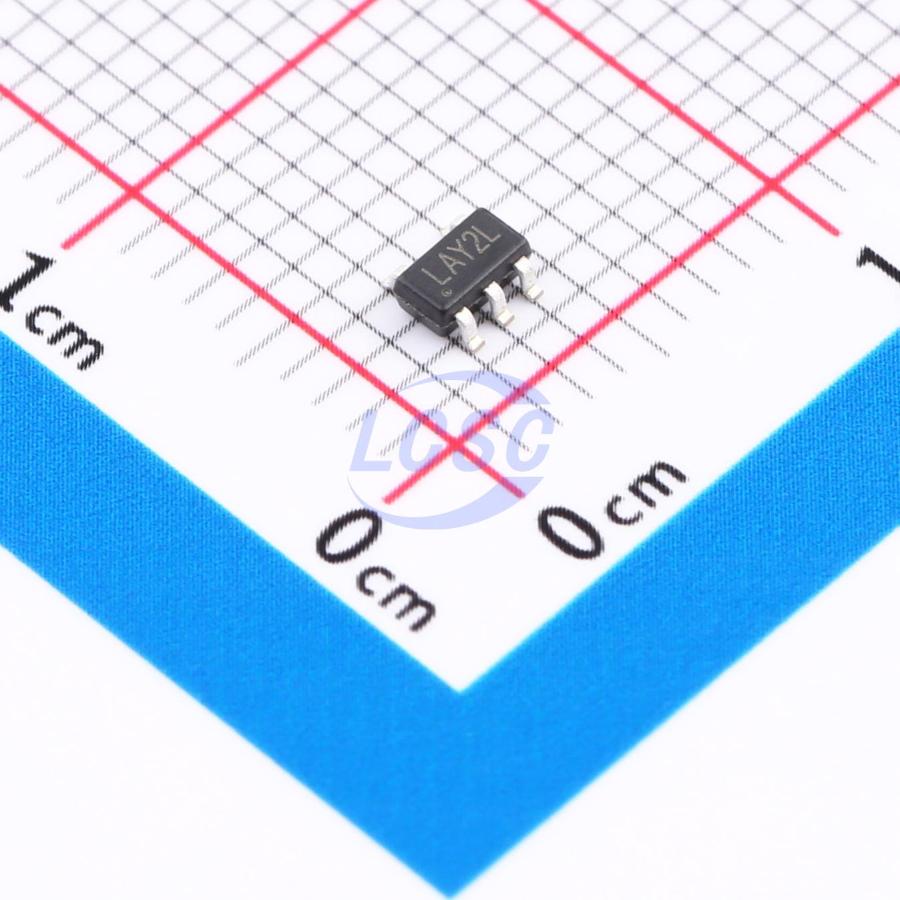

Suntek

SK6615CS5

2MHz Step-down type Adjustable 600mV~5.5V 1.5A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

High-Efficiency 1.5A 2MHz Synchronous Buck Converter

Manufacturer: Suntek
Manufacturer part #: SK6615CS5
Store part #: C2986199
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,555 in stock

#C2986199

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.91	₹94.55
50+	₹15.15	₹757.50
150+	₹13.27	₹1,990.50
500+	₹11.87	₹5,935.00
3,000+	₹10.74	₹32,220.00
6,000+	₹10.17	₹61,020.00

Quantity (min 5, multiples of 5)

5 × ₹18.91

₹94.55

excl. GST

₹111.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SK6615CS5

₹94.55 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 2MHz
Number of Outputs: 1
Function: Step-down type
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.6V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.5V
Output Current: 1.5A
Quiescent Current: 55uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.027 g

Overview

The SK6615C high-efficiency switching regulator is a small, simple, DC-to-DC step-down converter capable of delivering up to 1.5A of output current. The device operates in pulse-width modulation (PWM) at 2MHz from a 2.6V to 5.5V input voltage and provides an output voltage from 0.6V to VIN, making the SK6615C ideal for on-board post-regulation applications. An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal highside MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost.
