SK6619A

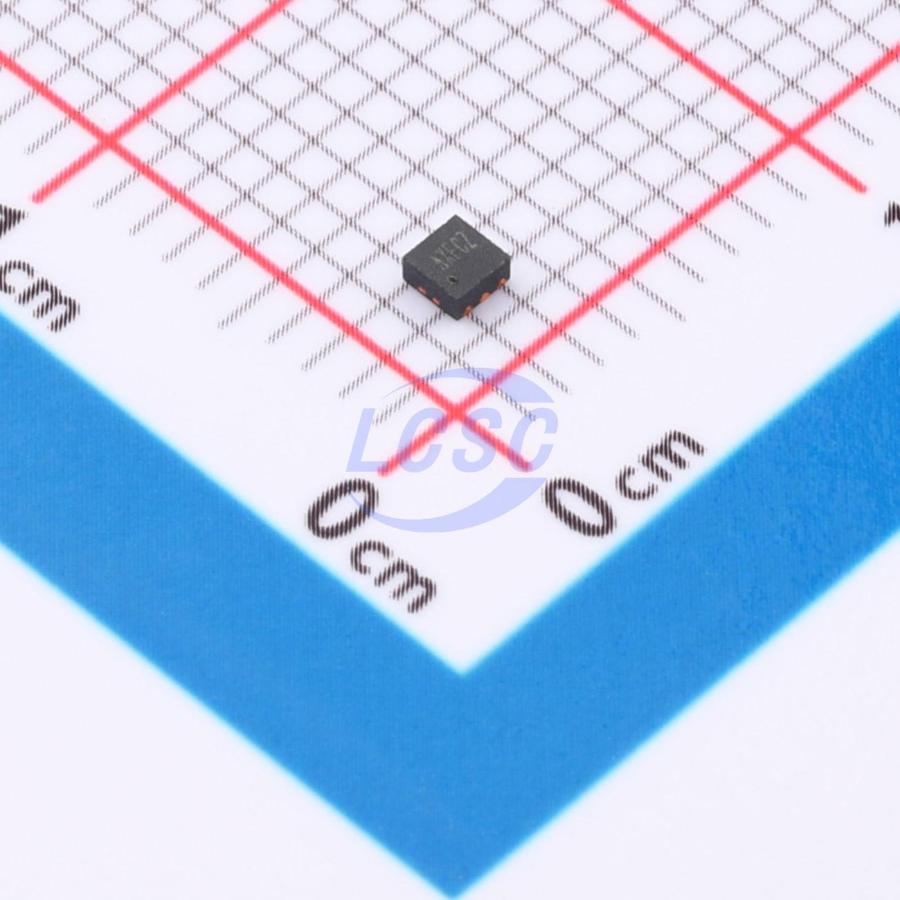

SK6619A is a high-efficiency monolithic synchronous buck regulator using a constant-frequency, current-mode architecture. The device is available in an adjustable version. An input voltage range of 2.7V to 5.5V makes the SK6619A ideal for single-cell Li-ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM/PFM mode operation delivers ultralow output ripple voltage for noise-sensitive applications. The switching frequency is internally set to 1.2MHz, allowing the use of small SMT inductors and capacitors. The 0.6V feedback reference voltage easily supports low output voltages. The SK6619A requires a minimal number of off-the-shelf external components and is offered in a space-saving DFN1.6x1.6-6 package.

Applications

• Cellular phones and smartphones
• Wireless and DSL modems
• Personal Digital Assistants (PDAs)
• Portable instruments
• Digital still and video cameras
• PC cards

Key features

• 2.7V to 5.5V input voltage range
• 2A continuous output current
• 1.2MHz switching frequency
• Built-in short-circuit protection
• Built-in overcurrent limiting
• Built-in overvoltage protection
• PFM mode at light load for high efficiency
• High efficiency: up to 96%
• Internal soft-start
• Output adjustable from 0.6V
• Overtemperature protection
• Low quiescent current: 40μA
