OPSCO Optoelectronics

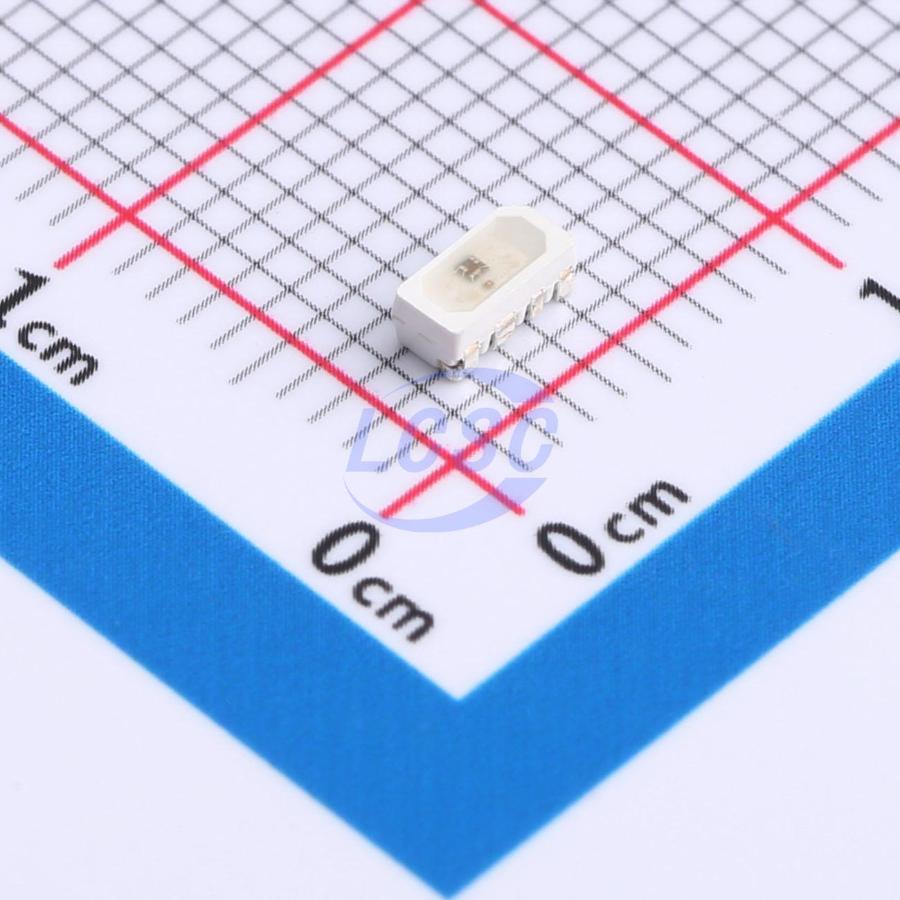

SK6812SIDE-A

SMD-4P,4x1.6mm LED Addressable, Specialty RoHS

PopularSMD-4P,4x1.6mmROHS CompliantActive

4.0x2.0x1.6 mm, 0.2 W intelligent externally controlled surface-mount SMD side-emitting LED

Manufacturer: OPSCO Optoelectronics
Manufacturer part #: SK6812SIDE-A
Store part #: C5378721
Package / case: SMD-4P,4x1.6mm
Category: LED Addressable, Specialty
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,07,895 in stock

#C5378721

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹12.12	₹60.60
50+	₹9.63	₹481.50
150+	₹8.53	₹1,279.50
1,500+	₹7.38	₹11,070.00
3,000+	₹7.05	₹21,150.00
4,500+	₹6.84	₹30,780.00

Quantity (min 5, multiples of 5)

5 × ₹12.12

₹60.60

excl. GST

₹71.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

SK6812SIDE-A

₹60.60 for 5 + GST

Specifications

Luminous Intensity - R: 240mcd~450mcd
Luminous Intensity - G: 697.5mcd~1162.5mcd
Luminous Intensity - B: 160mcd~320mcd
Data Transmission Rate: 800Kbit/s
Dominant Wavelength - R: 620nm~625nm
Dominant Wavelength - G: 520nm~535nm
Dominant Wavelength - B: 460nm~470nm
Fixed-Frequency Pwm Mode: 1kHz
Features: Built-in power-on reset circuit
Length: 4mm
Operating Temperature: -40℃~+85℃
ESD Withstand Voltage: 2000V
Height: 2mm
Lens Color: Translucent Frosted Lens
Width: 1.6mm
Viewing Angle: 120°

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.081 g

Overview

- Operating voltage: 5V@12mA (OUT RGB); Forward voltage: 5V@12mA (OUT RGB); - Viewing angle: 120°; Typical view angle 50%: 120°; - Lens color: translucent; - Built-in reset circuit, LED off at power-on; - Grayscale adjustment: 256 levels; - Single-line return-to-zero code transmission protocol, supports infinite cascading; - Data transmission frequency up to 800Kbps; at 30fps refresh rate, cascade count no less than 1024 points; - MSL: 5a; - ESD level: 2KV; - RoHS and REACH-compliant.
