CoreChipsDatasheet (PDF)

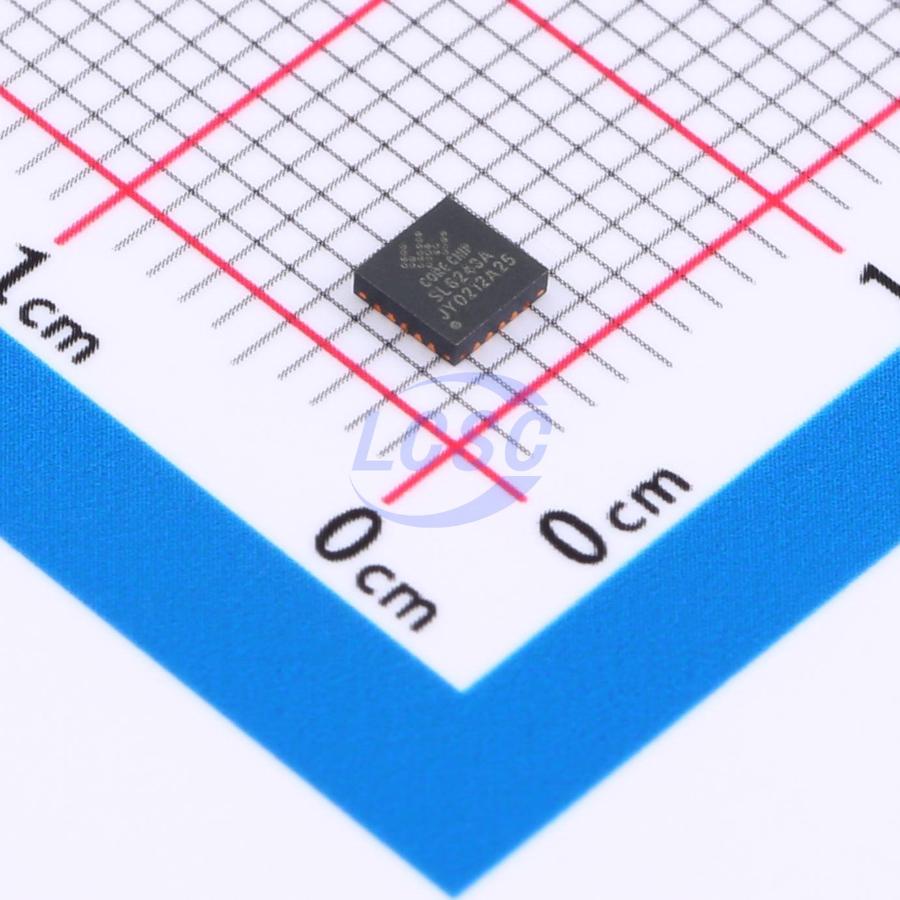

SL6243A
4 12Mbps USB 2.0 QFN-20-EP(3x3) Interface Controllers RoHS
QFN-20-EP(3x3)ROHS CompliantActive
- Manufacturer
- CoreChips
- Manufacturer part #
- SL6243A
- Store part #
- C48391681
- Package / case
- QFN-20-EP(3x3)
- Category
- Interface Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,261 in stock
#C48391681
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.25 | ₹57.25 |
| 10+ | ₹45.10 | ₹451.00 |
| 30+ | ₹40.11 | ₹1,203.30 |
| 100+ | ₹33.62 | ₹3,362.00 |
| 500+ | ₹30.80 | ₹15,400.00 |
| 1,000+ | ₹29.07 | ₹29,070.00 |
1 × ₹57.25
₹57.25
excl. GST
₹67.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SL6243A
₹57.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4V~5.25V
- Number of ports
- 4
- Features
- BC1.2 protocol support;Internal regulator;Power-on reset;ESD protection;Low-power mode
- Type
- Hub
- Data Rate
- 12Mbps
- Quiescent Supply Current
- 2.5mA
- USB Protocol
- USB 2.0
- Current - Supply
- 120mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.243 g
Overview
The chip operates on a single 5V supply, with integrated 5V-to-3.3V and 3.3V-to-1.2V voltage conversion, requiring only external filter capacitors on the power supply. An on-chip reset circuit is included, and the device features a low-power design.
Key features
- Full support for USB 2.0 High-Speed (480MHz), USB 1.1 Full-Speed (12MHz), and USB 1.0 Low-Speed (1.5MHz) modes
- Integrated one upstream port supporting HS/FS modes and four downstream ports supporting HS/FS/LS modes
- Integrated 12MHz to 480MHz PLL
- Multi-Transaction Translator technology with one Transaction Translator per downstream port, providing 12Mbps bandwidth per port when connected to Full-Speed devices
- Built-in 1.5Kohm upstream port pull-up resistors, 15Kohm downstream port pull-down resistors, and 45ohm high-speed termination resistors
- Hub implements one control endpoint and one interrupt endpoint
- Self-powered and bus-powered mode support
- BC1.2 charging protocol support
- Upstream port status indicator support
- Operating temperature range: -40°C to +85°C
