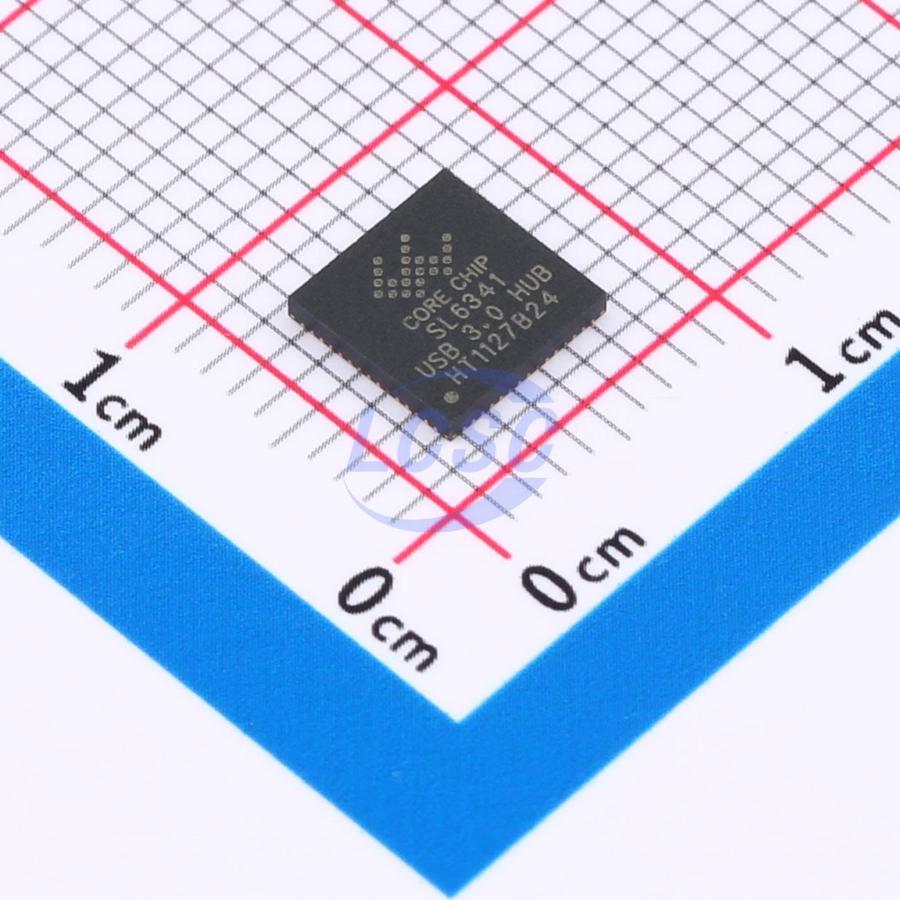

SL6341

SL6341 is a 4-port, low-power, high-performance and configurable USB3.2 Gen 1x1 Hub Controller. It is compliant with the USB3.2 Revision 1.0 specification. SL6341 integrates USB3.0 Super Speed transmitter/receiver physical layer(PHY) and USB2.0 high speed PHY. It supports Super Speed, High Speed, Full Speed and Low Speed USB Connections and is fully compatible to all USB 3.0, USB2.0 and USB 1.1 hosts. The integrated 5V to 3.3V regulator enables SL6341 to be powered directly from 5V USB VBus, reducing BOM cost while offering high power efficiency. SL6341 features the native fast-charging and complies with USB-IF battery charging specification Rev1.2, it could fast-charge Apple, Samsung Galaxy devices, and any device compliant with BC1.2/1.1. It also allows portable devices to draw up to 1.5A from SL6341 charging downstream ports (CDP1) or dedicated charging port (DCP2). It can also enable systems to fast charge handheld devices even during “Sleep” and “Power-off” states. The BC1.2 Feature is disabled by default, Customers can modify the strapping pin for configuring it enabled.

Applications

• Standalone USB hub/Docking station
• Tablet/Ultrabook/NB
• Motherboard
• Monitor built-in hub, SL6341 GPIOs can be programmed as I2C interface to easily update scalar firmware through USB interface
• TV built-in hub
• Compound device, such as hub-reader application
• USB wall charger
• Other consumer electronics
• Customized applications D

Key features

• 2.1 Compliant with USB 3.2 Specification Revision 1.0
• Upstream port supports super speed(SS) high speed(HS) and full speed(FS) traffic
• Downstream ports support SS, HS, FS, and low speed(LS) traffic
• 1 control pipe and 1 interrupt pipe
• Backward compatible to USB specification Revision 2.0/1.1
• 2.2 Featuring fast-charging on all downstream ports
• Compliant with USB Battery Charging Revision v1.2, supporting SDP(Standard Downstream Port), CDP, DCP, and ACA-Dock
• Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
• Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
• 2.3 On-chip 32-bit micro-processor
• RISC-like architecture
• 1 cycle instruction execution (maximum)
• Performance: 6 MIPS @ 24MHz (maximum)
• With 4K-byte RAM, 4K-byte internal ROM
• 2.4 Integrated USB transceiver
• Improving output drivers with slew-rate control for EMI reduction
• Internal power-fail detection for ESD recovery
• Integrated USB3.2 Gen 1x1 transceiver and USB 2.0 transceiver
• 2.5 Advanced power management and low power consumption
• Supporting USB3.0 U0/U1/U2/U3 power management states
• Supporting USB2.0 suspend and resume
• Supporting individual/gang mode over-current detection for all downstream ports
• Supporting individual/gang mode power-enable for all downstream ports
• 2.6 Configurable settings by SPI-flash/EEPROM/pin strapping
• Configurable BC1.2 charging function
• Supporting full in-system programming firmware upgrade by SPI-flash and EEPROM
• Supporting compound-device (non-removable setting on downstream ports)
• Supporting customization VID/PID(for USB.30 and USB2.0 independently)
• Configurable 1-wire, 3-wires, 4-wires led mode for downstream ports (SL6341x supported)
• 2.7 Flexible design
• Automatic switching between self-powered and bus-powered modes
• Supporting PHY tuning
• Supporting register setting by firmware
• Allow downstream ports to connect up to 8 devices, 4 x USB3.0 non-removable devices with 4 x USB2.0 non-removable devices or exposed ports
• 2.8 Low BOM cost
• Single external 24 MHz crystal / Oscillator clock input
• Built-in upstream port 1.5KΩ pull-up and downstream port 15KΩ pull-down resistors
• Built-in 5 to 3.3V LDO regulator
