SlkorDatasheet (PDF)

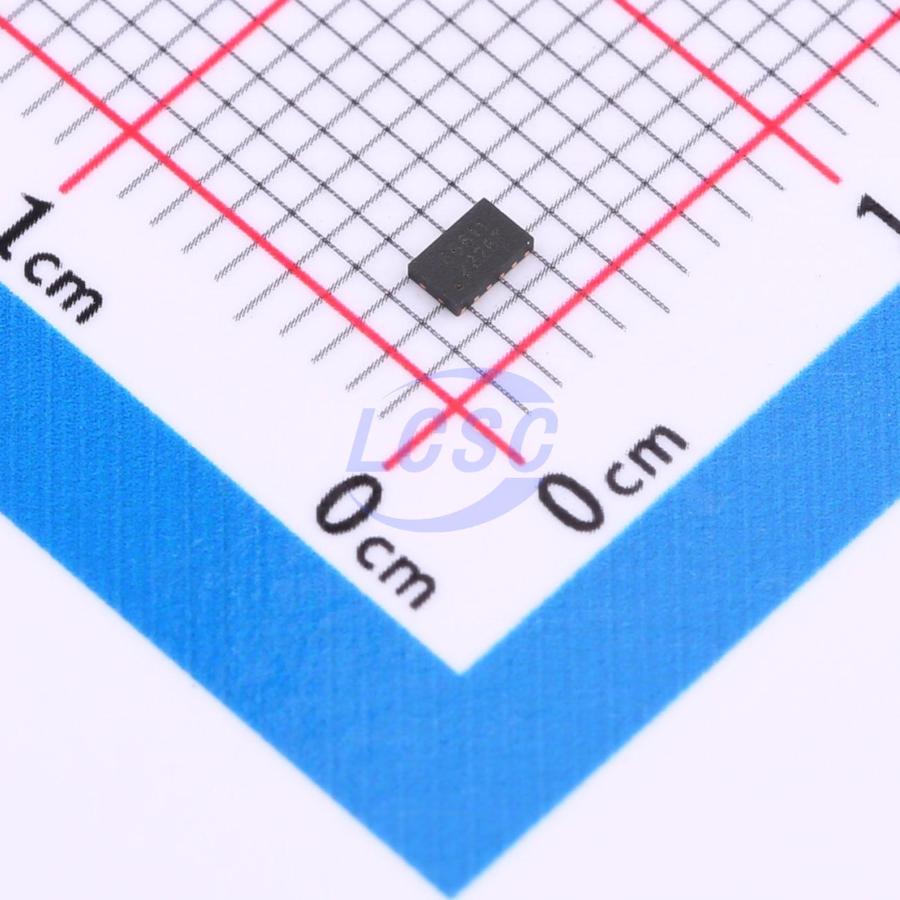

SL6802
1.5MHz Buck-Boost 200mA DFN-12(1.5x2.4) Voltage Regulators - DC DC Switching Regulators
DFN-12(1.5x2.4)RoHSActive
Triple DC-DC Converter
- Manufacturer
- Slkor
- Manufacturer part #
- SL6802
- Store part #
- C18208634
- Package / case
- DFN-12(1.5x2.4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,389 in stock
#C18208634
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.39 | ₹60.39 |
| 10+ | ₹47.15 | ₹471.50 |
| 30+ | ₹41.50 | ₹1,245.00 |
| 100+ | ₹34.54 | ₹3,454.00 |
| 500+ | ₹30.20 | ₹15,100.00 |
| 1,000+ | ₹28.47 | ₹28,470.00 |
1 × ₹60.39
₹60.39
excl. GST
₹71.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL6802
₹60.39 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 3
- Frequency - Switching
- 1.5MHz
- Function
- Buck-Boost
- Features
- Protection latch;Output discharge;Overcurrent Protection;Built-in LDO regulator;Output voltage tracking
- Output Type
- Fixed;Adjustable
- Topology
- Boost;Inverting
- Operating Voltage
- 2.9V~4.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 4.6V;-4.4V~-1.4V
- Output Current
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
SL6802 is a triple DC-DC converter designed to drive AMOLED display panel requiring 3 supply rails. It integrates an 200mA step-up converter VPOS, an 200mA inverting converter VNEG and an 20mA auxiliary LDO AVDD. The device is particularly suitable for battery operated products, in which the major concern is the overall system efficiency. The digital control allows programming the VNEG in digital steps. Excellent line and load regulation, soft start with controlled inrush current limit, thermal shutdown and short circuit protection are also integrated.
Applications
- AMOLED power supply in portable devices like mobile phones, multi-media players, camcorders, digital still cameras, and wearables.
Key features
- Operating input voltage range from 2.9V to 4.5V
- Step-up converter (VPOS) 4.6V output voltage
- 200mA output current
- 0.5% accuracy (25°C to 85°C)
- Inverting converter (VNEG) -1.4V to -4.4V programmable output voltage (-2.2V default)
- 200mA output current
- LDO (AVDD) 3.3V default or lower of Vin
- 20mA output current
- Efficiencies > 90%
- Excellent line and load regulation
- Short circuit protection
- Thermal shutdown
