Slkor

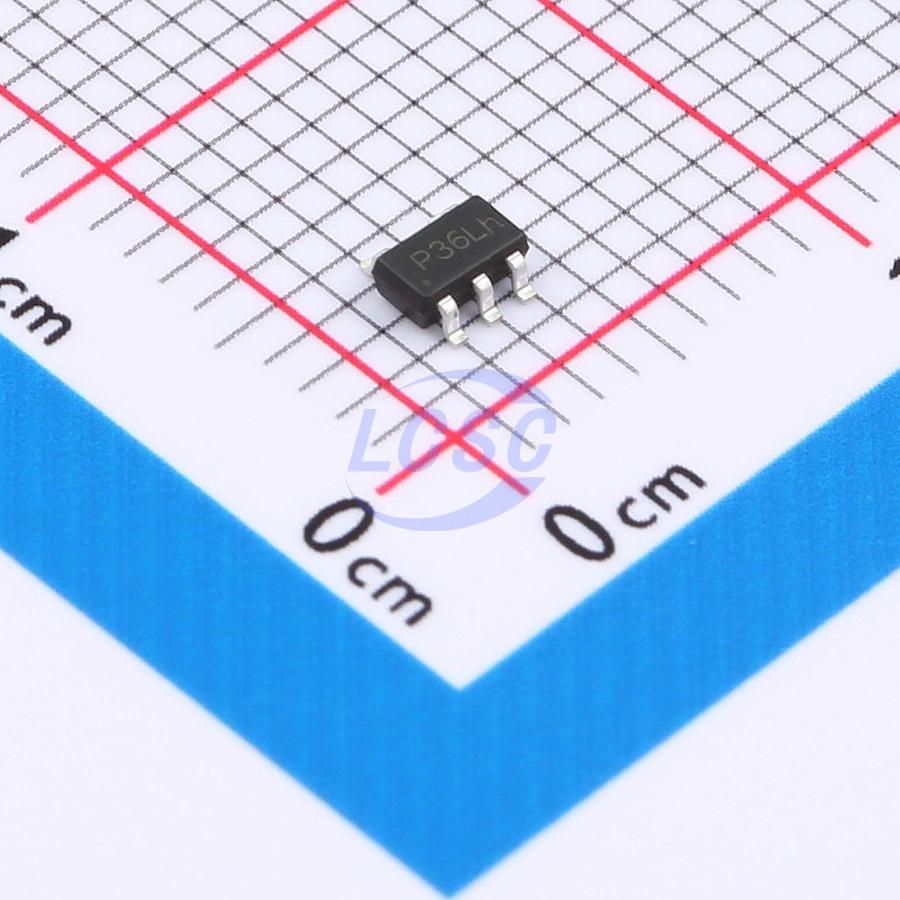

SL7136YT5

Step-down type 1MHz Adjustable 3A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

High-efficiency 3A synchronous rectification step-down converter

Manufacturer: Slkor
Manufacturer part #: SL7136YT5
Store part #: C41369487
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,415 in stock

#C41369487

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹17.75	₹88.75
50+	₹14.12	₹706.00
150+	₹12.28	₹1,842.00
500+	₹10.91	₹5,455.00
3,000+	₹9.82	₹29,460.00
6,000+	₹9.27	₹55,620.00

Quantity (min 5, multiples of 5)

5 × ₹17.75

₹88.75

excl. GST

₹104.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SL7136YT5

₹88.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Number of Outputs: 1
Function: Step-down type
Frequency - Switching: 1MHz
Features: Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 35uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The SL7136/36P/36D2 is a high-efficiency synchronous Buck converter that can operate over a wide input voltage range of 2.5V to 5.5V and can deliver up to 3A of output current. It integrates the main switch and synchronous switch inside, and has extremely low onresistance to reduce conduction loss. The switching frequency is 1.0 MHz, which can reduce the size of the external inductor and output capacitor and reduce the output voltage ripple. The SL7136/36P/36D2 is available in SOT23-5 / SOT23-6 / DFN2×2-8 package.

Applications

Set-top box
Mobile phones, handheld game consoles, media players
Electric toys, meters

Key features

2.5V~5.5V input voltage range
35uA ultra-low quiescent current
Internal soft-start reduces chip stress
Input Overvoltage Protection (OVP)
Short circuit protection Hiccup mode
Internal integrated low RDS(ON) switch 1.0 MHz switching frequency minimizes external components
Optimized PFM mode to improve light-load efficiency
100% duty cycle supports input and output low dropout operation
RoHS Compliant and Halogen Free SL7136:SOT23-5 / SL7136P:SOT23-6 / SL7136D2:DFN2×2-8 package
