SLD8S57A

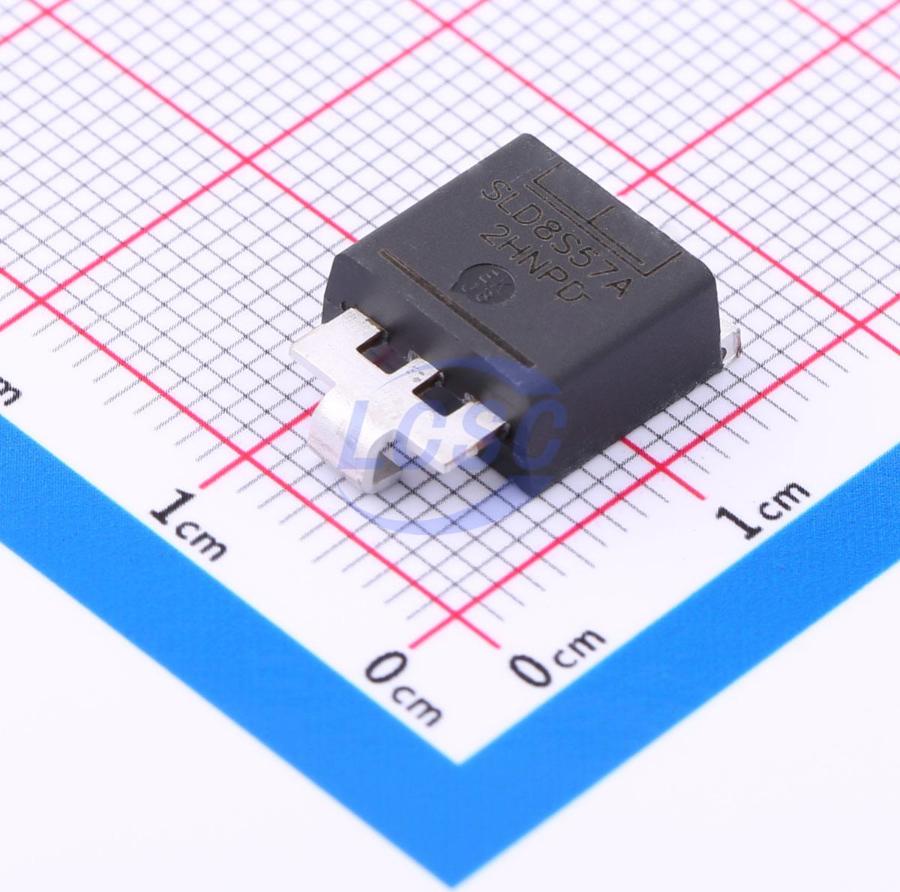

The SLD8S Series TVS Diode is housed in a SMTO-263 package with lead modifications. It is designed to protect sensitive electronics against lightning and inductive load switching voltage transient events for severe Automotive Load Dump applications.

Applications

• Inductive Load Switching
• Alternator Load Dump

Key features

• AEC-Q101 qualifed
• SMTO-263 package, and foot print is compatible to industrial popular DO-218AB package
• Meet ISO7637-2 5a/5b protection and ISO16750 load dump test (refer to APP note for details)
• V(BR) @T(J)=V(BR) @25°C×(1 + αT×(T1 - 25)) (αT:Temperature Coeffcient, typical value is 0.1%)
• Glass passivated chip junction in modified TO-263 package
• ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV(Contact)
• EFT protection of data lines in accordance with IEC 61000-4-4
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Low incremental surge resistance
• UL Recognized compound meeting flammability rating V-0
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
• For surface mounted applications to optimize board space
• Low profile package
• High temperature to reflow soldering guaranteed: 260°C/10sec at terminals
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin (Sn) (IPC/JEDEC J-STD609A.01)
