SLM6800

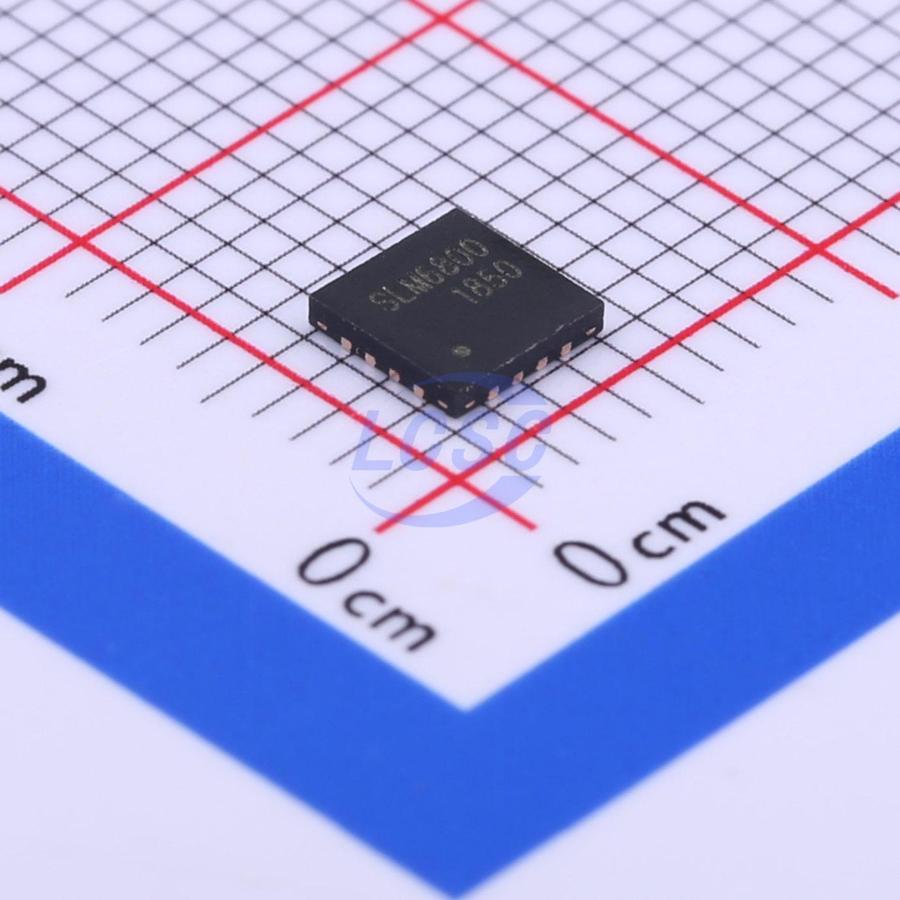

The SLM6800 is a two-cell lithium battery synchronous boost charging circuit designed for 5V adapters. It integrates full on-chip power MOSFETs and a synchronous boost converter operating at 750kHz switching frequency, achieving charging efficiency of up to 92% or higher with a maximum charging current of 1.5A. The device incorporates a complete charge termination circuit, automatic recharge, and a preset charging voltage of 8.4V with ±1% accuracy. Multiple protection features are integrated on-chip, including reverse current protection, output short-circuit protection, and IC and battery temperature protection. It features adaptive input current capability to prevent adapter overload, making it suitable for a wide range of DC devices and standard USB charging equipment. The device integrates 20V power MOSFETs capable of withstanding voltages up to 20V, with built-in undervoltage and overvoltage protection for high reliability — no additional surge or overvoltage protection components are required. The SLM6800 is housed in a compact QFN4x4-16L package, helping to minimize PCB footprint.

Applications

• Mobile phones
• Tablets
• Bluetooth speakers
• Digital cameras
• Power banks
• GPS
• Portable devices
• Various chargers

Key features

• Input voltage protection up to 20V
• Fully integrated power MOSFET
• Output efficiency up to 92% and above
• Adjustable output current up to 1.5A
• Automatic input current detection with adapter auto-sensing
• Automatic current limiting at high temperature and over-temperature shutdown protection
• No anti-backflow diode required
• No external power MOSFET or freewheeling diode required
• 8.4V charging voltage with ±1% accuracy
• Dual-LED charging status indication with no-battery or fault status display
• Dual-cell 5.6V trickle charge voltage switching
• Integrated under-voltage and over-voltage protection
• Battery temperature monitoring
• Output short-circuit protection
• Compact QFN4x4-16L package
