SOLA-ICDatasheet (PDF)

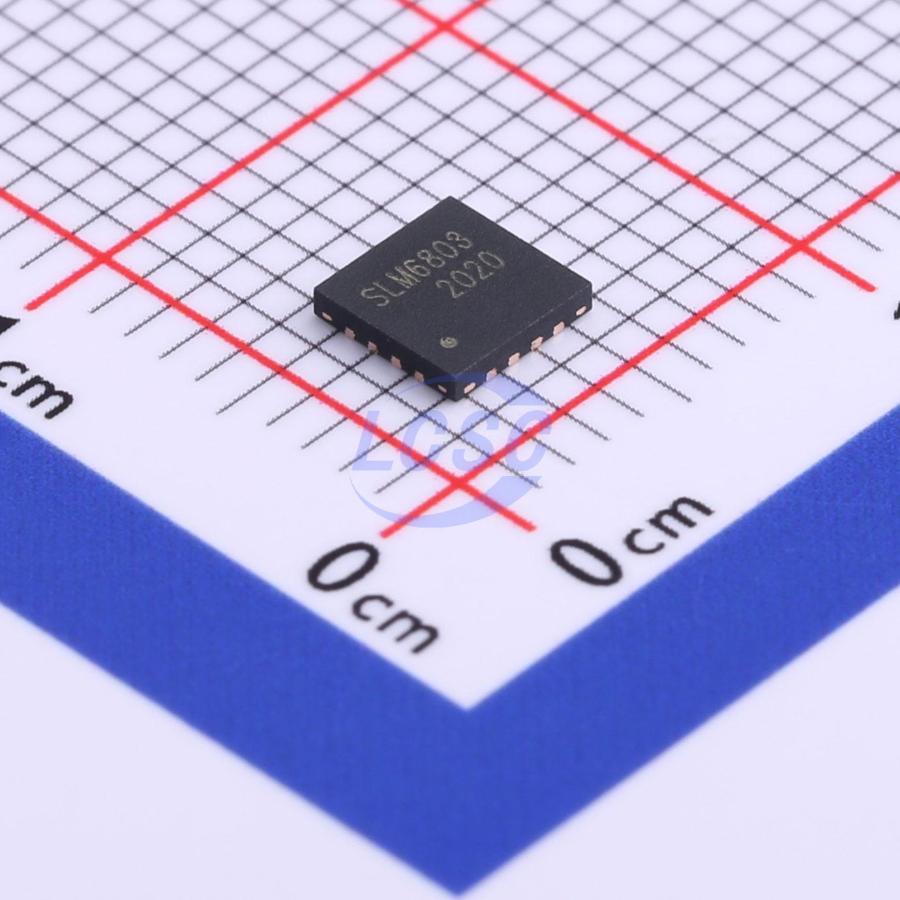

SLM6803
Boost Switching Regulator IC Fixed 12.6V 1A QFN-16-EP(4x4)
QFN-16-EP(4x4)ROHS CompliantActive
5V input step-up charging circuit for three lithium batteries
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM6803
- Store part #
- C711587
- Package / case
- QFN-16-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C711587
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.24 | ₹77.24 |
| 10+ | ₹62.05 | ₹620.50 |
| 30+ | ₹54.45 | ₹1,633.50 |
| 100+ | ₹46.86 | ₹4,686.00 |
| 500+ | ₹44.70 | ₹22,350.00 |
| 1,000+ | ₹42.53 | ₹42,530.00 |
1 × ₹77.24
₹77.24
excl. GST
₹91.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SLM6803
₹77.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Number of Outputs
- 1
- Function
- Boost
- Frequency - Switching
- 750kHz
- Features
- Adjustable current limiting;Operating status indication;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 3V~20V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12.6V
- Output Current
- 1A
- Quiescent Current
- 100nA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.079 g
Overview
Applications
- Mobile Phone
- Tablet PC
- Bluetooth Speaker
- Digital Camera
- Mobile Power
- GPS
- Portable Devices, Various Chargers
Key features
- Up to 20V Input Voltage Protection
- Fully Integrated Power MOSFET
- Up to 92% Output Efficiency
- Maximum 1.0A Adjustable Output Current
- Input Current Automatic Identification, Adapter Adaptation
- Chip High Temperature Automatic Current Limiting and Over Temperature Shutdown Protection
- No External Power MOS
- Accuracy of 12.6V±1% Charging Voltage
- Charging Status Dual Lamp Indication, No Battery or Fault Status Indication
- Three Cells 8.4V Trickle Charge Voltage Switching
- Integrated Under-voltage and Over-voltage Protection
- Battery Temperature Monitoring
- Output Short Circuit Protection
- Small QFN4x4-16L Package
