TECH PUBLIC

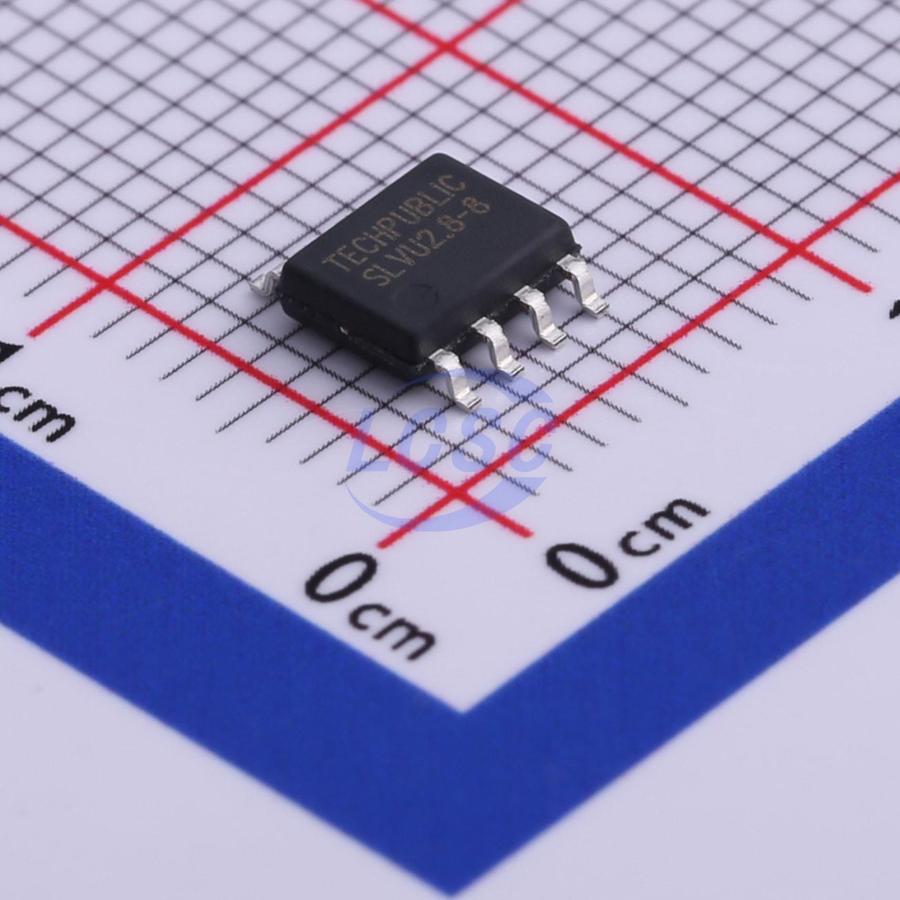

SLVU2.8-8-TP

17VC Clamp 23A@8/20us Ipp ESD DIODE SO-8

SO-8RoHSActive

ESD DIODE 2.8VWM 17VC SO-8

Manufacturer: TECH PUBLIC
Manufacturer part #: SLVU2.8-8-TP
Store part #: C558439
Package / case: SO-8
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,290 in stock

#C558439

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹61.06	₹61.06
10+	₹48.88	₹488.80
30+	₹43.90	₹1,317.00
100+	₹37.37	₹3,737.00
500+	₹31.29	₹15,645.00
1,000+	₹29.56	₹29,560.00

Quantity (min 1)

1 × ₹61.06

₹61.06

excl. GST

₹72.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SLVU2.8-8-TP

₹61.06 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 6V;8V;10V;17V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 23A@8/20us
Peak Pulse Power Dissipation (Ppp): 400W@8/20us
Number of Channels: 8
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 1uA
Reverse Stand-Off Voltage (Vrwm): 2.8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

Applications

10/100 Ethernet
WAN/LAN Equipment
Switching Systems
DSLAMs
Desktops, Severs, & Notebooks
Instrumentation
Base Stations
Analog Inputs

Key features

400W peak pulse power(8/20µs)
Protects four line pairs(eight lines)
High peak pulse current l
Comprehensive pin out for easy board layout
Low capacitance
Low leakage current
Low operating and clamping voltages
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 23 A (8/20µs)
RoHS Compliant
