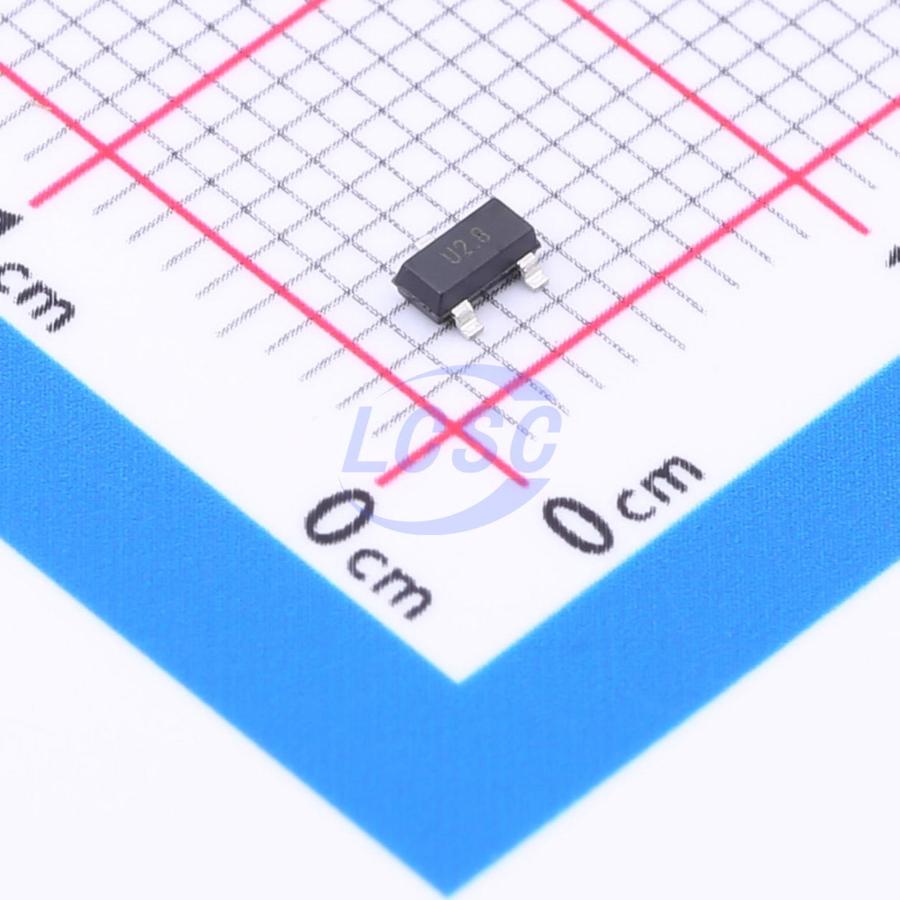

SLVU2.8HTG
15VC Clamp 40A@8/20us Ipp TVS DIODE SOT-23-3
- Manufacturer
- Littelfuse
- Manufacturer part #
- SLVU2.8HTG
- Store part #
- C1847655
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C1847655
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.24 | ₹99.24 |
| 10+ | ₹80.50 | ₹805.00 |
| 30+ | ₹71.12 | ₹2,133.60 |
| 100+ | ₹61.76 | ₹6,176.00 |
| 500+ | ₹56.23 | ₹28,115.00 |
| 1,000+ | ₹53.45 | ₹53,450.00 |
1 × ₹99.24
₹99.24
excl. GST
₹117.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SLVU2.8HTG
₹99.24 for 1 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 40A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W@8/20us
- Voltage - Breakdown
- 3V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 2.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The SLVU2.8 series was designed to protect low voltage, CMOS devices from ESD and lightning induced transients. There is a compensating diode in parallel with the low voltage TVS to protect one unidirectional line or a high speed data pair when two devices are paired together. These robust structures can safely absorb repetitive ESD strikes at ±30kV (contact discharge) per the IEC 61000 - 4 - 2 standard and each structure can safely dissipate up to 40A (IEC 61000 - 4 - 5, tp = 8/20μs) with very low clamping voltages.
Applications
- 10/100/1000 Ethernet
- WAN/LAN Equipment
- Switching Systems
- Desktops, Servers, and Notebooks
- Analog Inputs
- Base Stations
- Security Systems
- Surveillance Cameras
Key features
- ESD, IEC 61000 - 4 - 2, ±30kV contact, ±30kV air
- EFT, IEC 61000 - 4 - 4, 40A (5/50ns)
- Lightning, IEC 61000 - 4 - 5, 2nd edition 40A (8/20μs)
- Low capacitance of 2pF per line (Pin 2 to 1)
- Low leakage current of 1μA (MAX) at 2.8V
- Small SOT23 - 3 (JEDEC TO - 236) package saves board space
- RoHS compliant and leadfree
