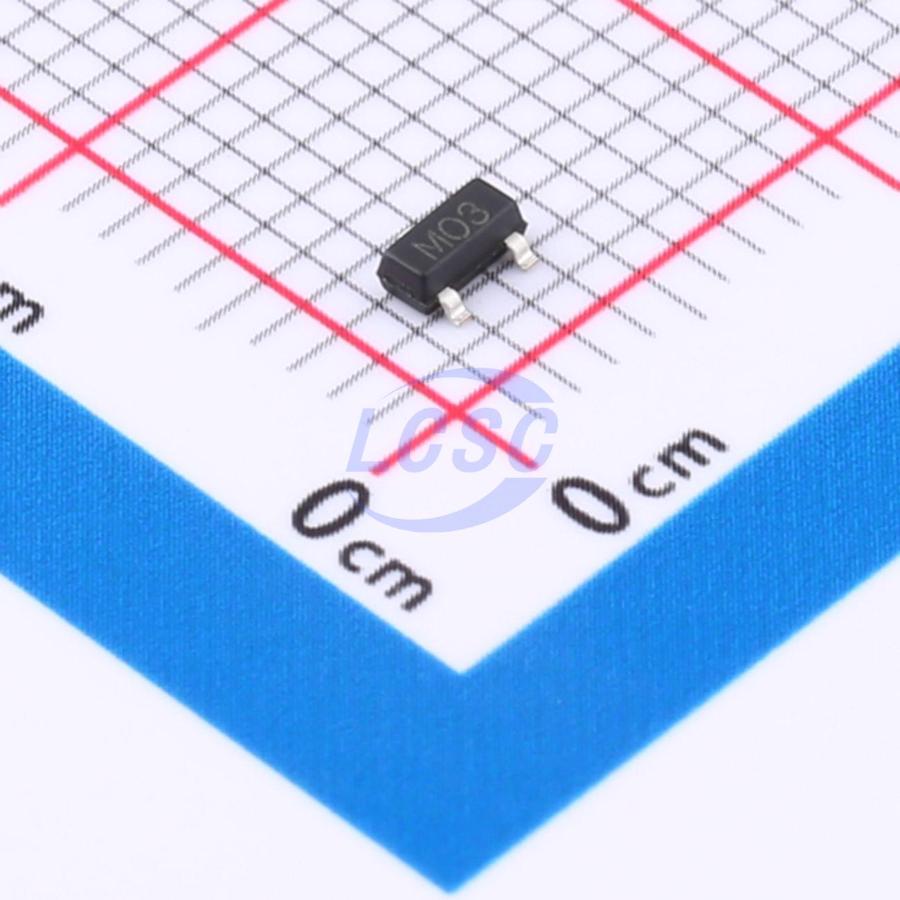

MSKSEMI

SM03

7VC Clamp 25A Ipp ESD DIODE SOT-23

SOT-23RoHSActive

ESD DIODE 3.3VWM 7VC SOT-23

Manufacturer: MSKSEMI
Manufacturer part #: SM03
Store part #: C7379971
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,620 in stock

#C7379971

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
20+	₹5.08	₹101.60
200+	₹4.02	₹804.00
600+	₹3.44	₹2,064.00
3,000+	₹2.79	₹8,370.00
9,000+	₹2.49	₹22,410.00
21,000+	₹2.32	₹48,720.00

Quantity (min 20, multiples of 20)

20 × ₹5.08

₹101.60

excl. GST

₹119.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SM03

₹101.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Peak Pulse Current (Ipp): 25A
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Voltage - Breakdown: 4V
type: ESD
Reverse Leakage Current (Ir): 20uA
Polarity: Bidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.034 g

Overview

Applications

Cell Phone Handsets and Accessories
Microprocessor based equipment
Personal Digital Assistants (PDA’s)
Notebooks, Desktops, and Servers
Portable Instrumentation
Networking and Telecom
Serial and Parallel Ports. Peripherals

Key features

IEC61000-4-2 (ESD) ±30 kV (Contact)
±30 kV (Air)
IEC61000-4-4 (EFT) 40A (5/50ns)
350 Watts Peak Pulse Power per (tp = 8/20μs)
Protects one bidirectional line or two unidirectional lines
Low clamping voltage
Working voltages: 3.3V to 36V
Low leakage current

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	CESD3V3AP-MS#C7379982MSKSEMI · SOT-23	MSKSEMI	SOT-23	On request	₹2.73 · 0 in stock	View
