JSTDatasheet (PDF)

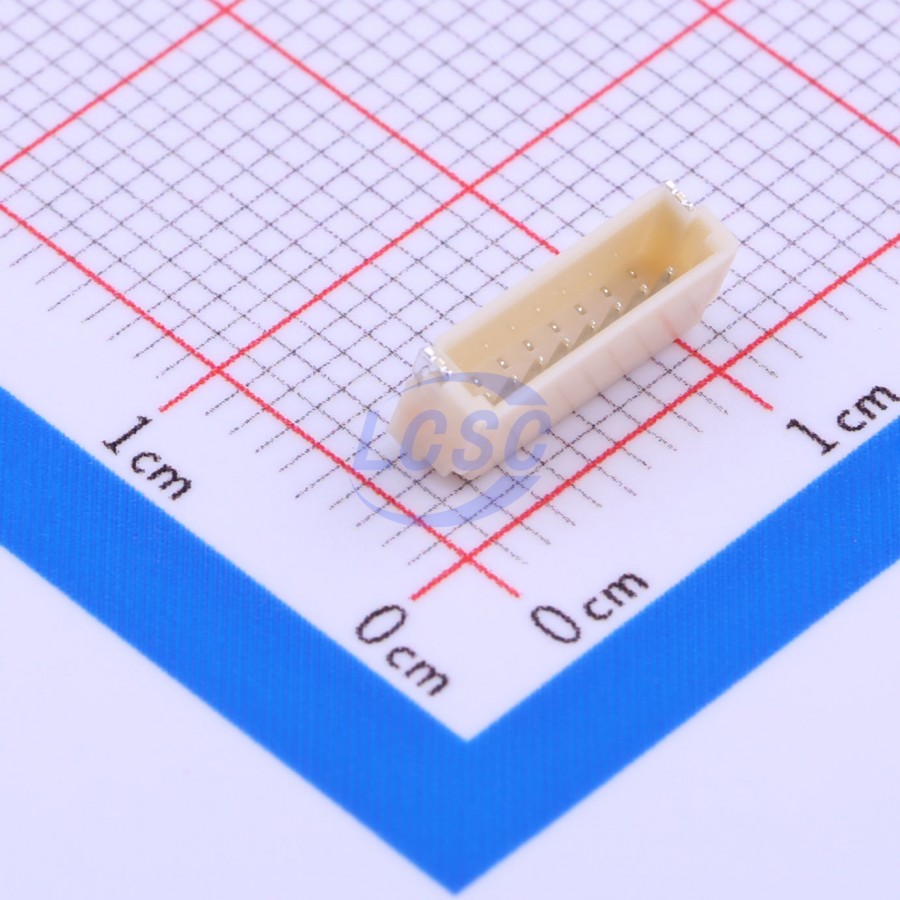

SM08B-SRSS-TB(LF)(SN)
Connector Header 8 position 1mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
PopularSMD,P=1mm,Surface Mount,Right AngleROHS3 CompliantActive
CONN HEADER SMD R/A 8POS 1mm
- Manufacturer
- JST
- Manufacturer part #
- SM08B-SRSS-TB(LF)(SN)
- Store part #
- C160407
- Package / case
- SMD,P=1mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,17,025 in stock
#C160407
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.23 | ₹221.15 |
| 50+ | ₹35.75 | ₹1,787.50 |
| 150+ | ₹32.11 | ₹4,816.50 |
| 500+ | ₹27.57 | ₹13,785.00 |
| 3,000+ | ₹25.56 | ₹76,680.00 |
| 6,000+ | ₹24.34 | ₹1,46,040.00 |
5 × ₹44.23
₹221.15
excl. GST
₹260.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM08B-SRSS-TB(LF)(SN)
₹221.15 for 5 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Reference Series
- SH
- Voltage Rating (Max)
- 50V
- Contact Material
- Copper alloy
- Number of PINs Per Row
- 8
- Number of Rows
- 1
- Pitch
- 1mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 1A
- Supplementary Features
- Auxiliary Solder Pin
- Number of PINs
- 8P
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Plastic Material
- PA
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 10mm
- Pin Structure
- 1x8P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1.0-Q-8PWB-R-0#C53895860GUOCONN · SMD,P=1mm,Surface Mount,Right Angle | GUOCONN | SMD,P=1mm,Surface Mount,Right Angle | 1,990 | ₹11.35 · 1,990 in stock | View |
 | LAIL-PHC1.0-8P-01-SH-WT#C54905965LAILAN · SMD,P=1mm,Surface Mount,Right Angle | LAILAN | SMD,P=1mm,Surface Mount,Right Angle | 9,985 | ₹22.44 · 9,985 in stock | View |
 | W1001120-8PW2431#C42382856HMTCONN · SMD,P=1mm,Surface Mount,Right Angle | HMTCONN | SMD,P=1mm,Surface Mount,Right Angle | 11,185 | ₹9.53 · 11,185 in stock | View |
 | 1WF02-145008-00001#C7432844CHIN-BAN · SMD,P=1mm,Surface Mount,Right Angle | CHIN-BAN | SMD,P=1mm,Surface Mount,Right Angle | 1,350 | ₹16.67 · 1,350 in stock | View |
 | 1.0-8PWB#C7465619DEALON · SMD,P=1mm,Surface Mount,Right Angle | DEALON | SMD,P=1mm,Surface Mount,Right Angle | 360 | ₹13.49 · 360 in stock | View |
