TECH PUBLICDatasheet (PDF)

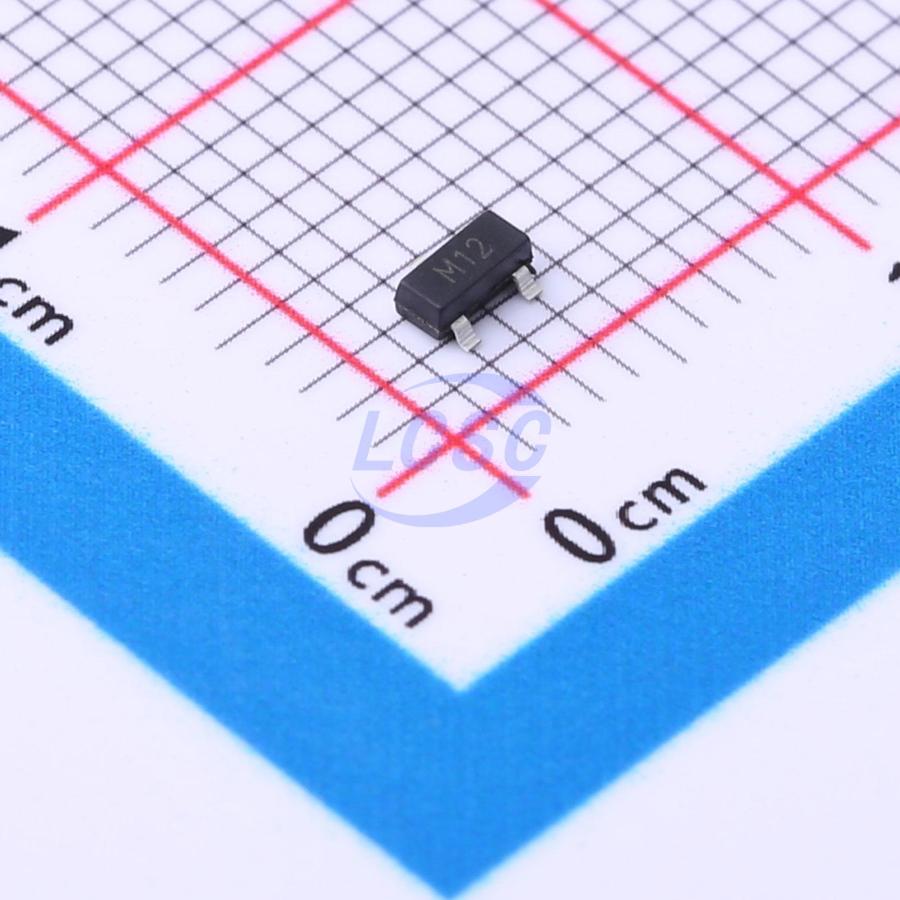

SM12
30VC Clamp 15A@8/20us Ipp SOT-23
SOT-23RoHSActive
12VWM 30VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SM12
- Store part #
- C2905611
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C2905611
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.30 | ₹630.00 |
| 300+ | ₹5.53 | ₹1,659.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹3.98 | ₹23,880.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM12
₹78.30 for 10 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 15A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 450W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 15V
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
