TECH PUBLIC

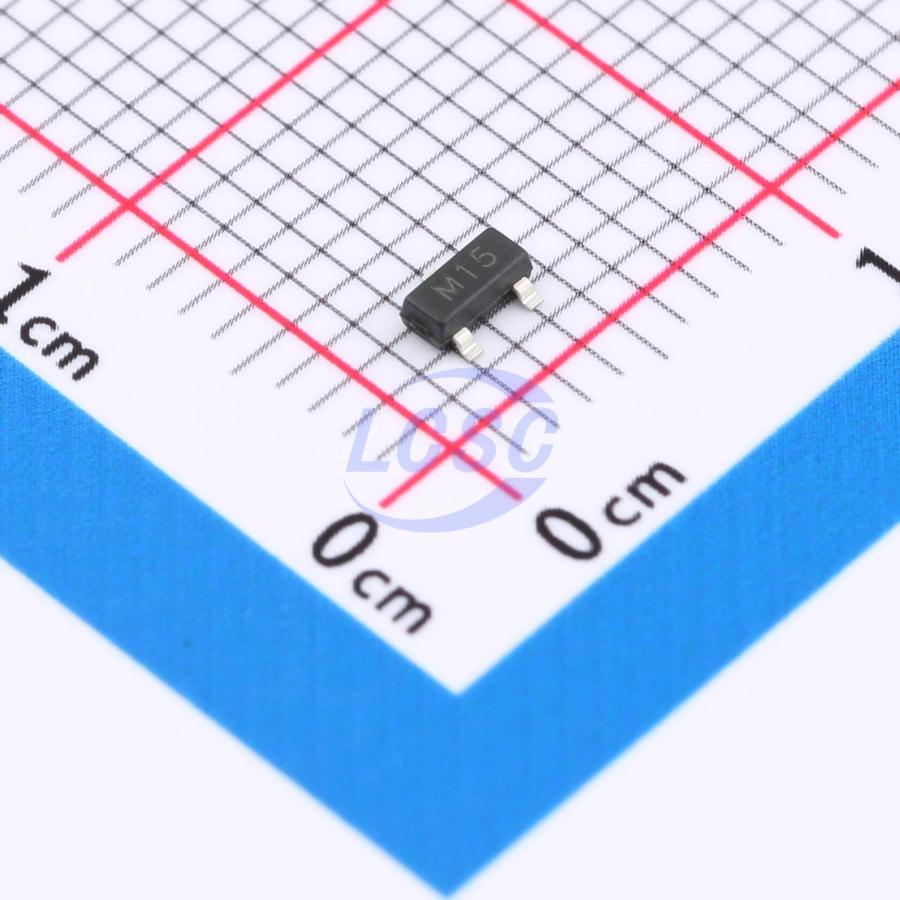

SM15

33VC Clamp 12A@8/20us Ipp ESD DIODE SOT-23-3

SOT-23-3RoHSActive

ESD DIODE 15VWM 33VC SOT-23-3

Manufacturer: TECH PUBLIC
Manufacturer part #: SM15
Store part #: C2841381
Package / case: SOT-23-3
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

890 in stock

#C2841381

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.46	₹54.60
100+	₹4.38	₹438.00
300+	₹3.84	₹1,152.00
3,000+	₹3.07	₹9,210.00
6,000+	₹2.75	₹16,500.00
9,000+	₹2.59	₹23,310.00

Quantity (min 10, multiples of 10)

10 × ₹5.46

₹54.60

excl. GST

₹64.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SM15

₹54.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 33V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 12A@8/20us
Peak Pulse Power Dissipation (Ppp): 380W@8/20us
Number of Channels: 2
Voltage - Breakdown: 16V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.032 g

Overview

Applications

Cellular Handsets and Accessories
Notebooks and Handhelds
Portable Instrumentation
Set Top Box
Industrial Controls

Key features

380W peak pulse power (8/20us)
Protects one bi-directional or two uni-directional lines
Ultra low leakage: nA level
Operating voltage: 12V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 12A (8/20μs)
RoHS Compliant
