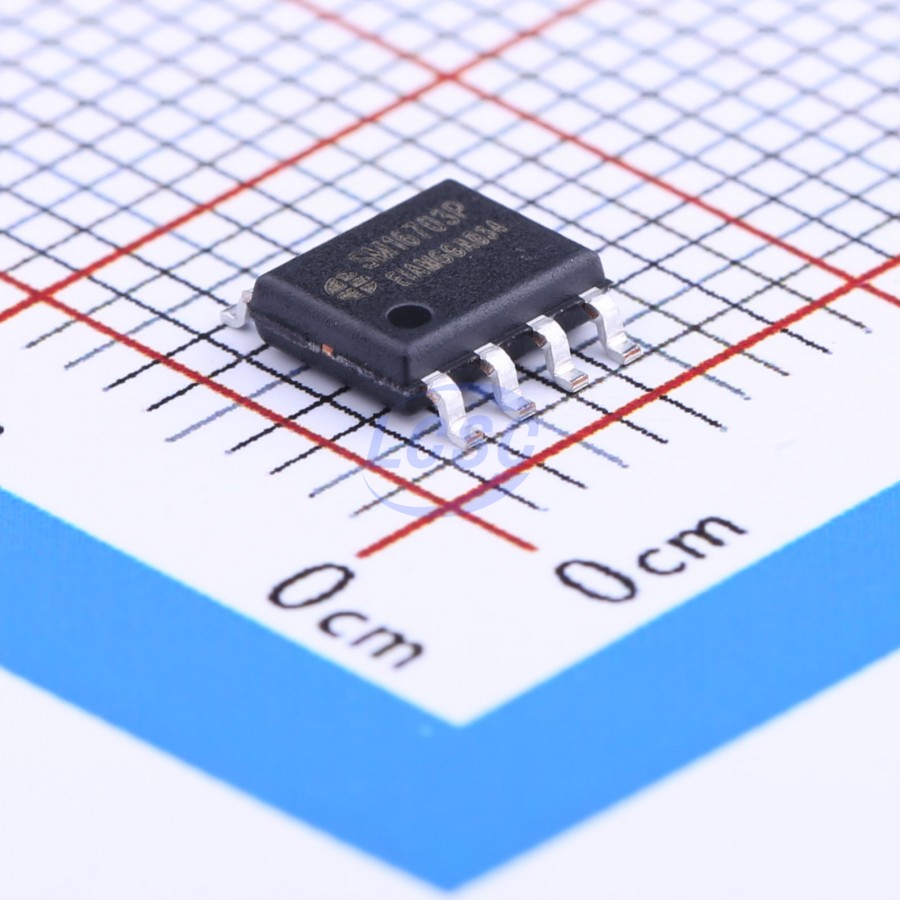

Shenzhen Sunmoon Micro

SM16703P

LED Driver IC 3 Output PWM Dimming 17mA SOP-8

SOP-8ROHS CompliantActive

Decorative lighting driver IC

Manufacturer: Shenzhen Sunmoon Micro
Manufacturer part #: SM16703P
Store part #: C155753
Package / case: SOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,310 in stock

#C155753

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.03	₹70.30
100+	₹5.66	₹566.00
300+	₹4.99	₹1,497.00
1,000+	₹4.48	₹4,480.00
4,000+	₹3.63	₹14,520.00
8,000+	₹3.41	₹27,280.00
20,000+	₹3.37	₹67,400.00
40,000+	₹3.35	₹1,34,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.03

₹70.30

excl. GST

₹82.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SM16703P

₹70.30 for 10 + GST

Specifications

Frequency - Switching: 1.2kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 3
Output Current: 17mA
Voltage - Input(DC): 5V~24V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.158 g

Overview

SM16703P is a single-wire transmission three-channel LED driver control IC, adopting a unipolar return-to-zero communication protocol. The chip integrates a power regulation circuit, signal decoding module, data latch, built-in constant current circuit, output driver utilizing proprietary SPWM technology, and a built-in RC oscillator.

Applications

Indoor LED decorative lighting
Architectural LED façade/ambient lighting
Wall washers, curtain screens
Perforated letter signs
Guard rail tubes

Key features

Synchronous refresh
High-voltage CMOS process
Chip input voltage 5~24V @ built-in voltage regulator circuit
OUT output port withstand voltage 26V
Brightness adjustment circuit (256-level adjustable brightness)
Default power-on white light output
Default output constant current 17mA
Single-wire serial cascade interface (DIN, DOUT)
Built-in high-precision and high-stability oscillator
Data reshaping: automatically reshapes and outputs subsequent data after receiving current unit data
Data transmission rate 800Kbps
Package: SOP8
