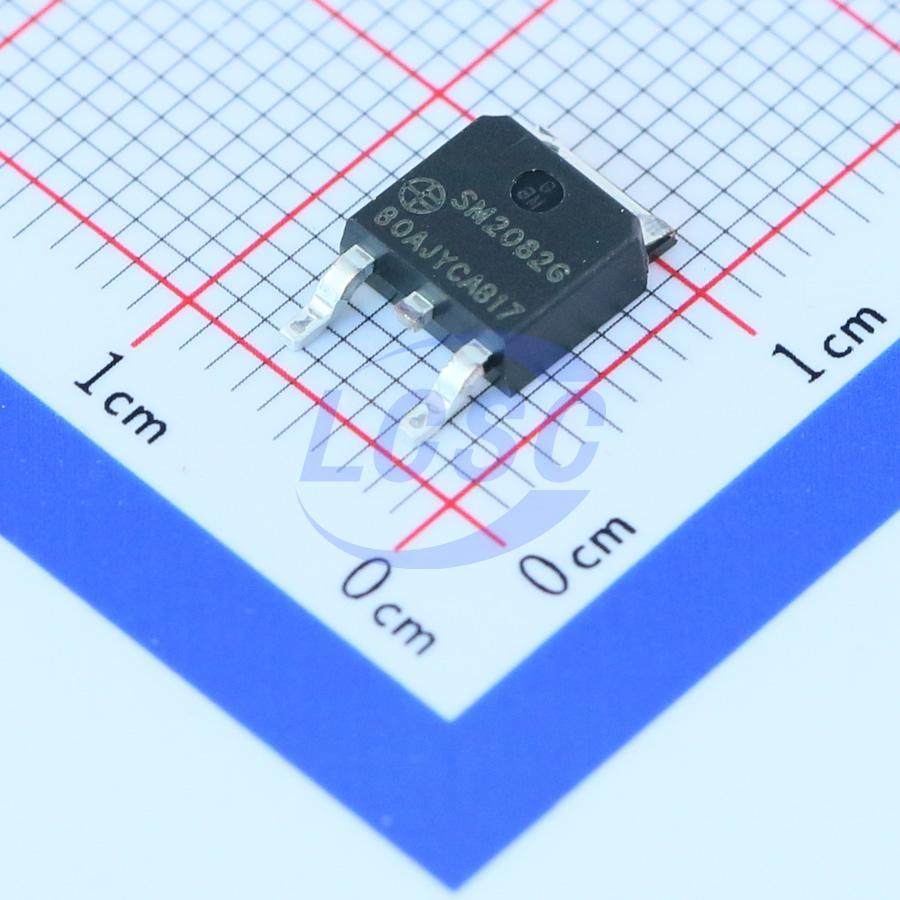

Shenzhen Sunmoon Micro

SM2082G

1 AC-DC 60mA TO-252 LED Drivers ICs RoHS

TO-252ROHS CompliantActive

Single-channel LED constant current drive control chip

Manufacturer: Shenzhen Sunmoon Micro
Manufacturer part #: SM2082G
Store part #: C111981
Package / case: TO-252
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,960 in stock

#C111981

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.02	₹55.10
50+	₹8.77	₹438.50
150+	₹7.65	₹1,147.50
500+	₹6.80	₹3,400.00
3,000+	₹5.97	₹17,910.00
6,000+	₹5.64	₹33,840.00

Quantity (min 5, multiples of 5)

5 × ₹11.02

₹55.10

excl. GST

₹65.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SM2082G

₹55.10 for 5 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Voltage - Input(AC): 120VAC~220VAC
Operating temperature: -40℃~+150℃
Number of Channels: 1
Type: AC-DC
Output Current: 60mA
Constant Current Accuracy: 4%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.44 g

Overview

SM2082G is a single-channel LED linear constant current control chip. The chip uses patented constant current setting and control technology. The output current is set by an external Rext resistor, and the output current does not change with the chip OUT port voltage. It has good constant current performance. The chip has an over-temperature adjustment function. When the chip temperature reaches the over-temperature adjustment point, the output current gradually decreases, which protects the chip and improves application reliability. The system structure is simple, there are very few peripheral components, and the solution cost is low.

Applications

filament lamp
LED bulbs, downlights, etc.
Other LED lighting applications

Key features

Patented constant current control technology, the output current deviation between chips is ±4%
Input voltage: 120V ac /220V ac
Support thyristor dimming application circuit
With over-temperature adjustment function
The chip can share the PCB board with the LED
Simple wiring and low cost
Package form: TO252-2, SOT89-3
