MDD(Microdiode Semiconductor)Datasheet (PDF)

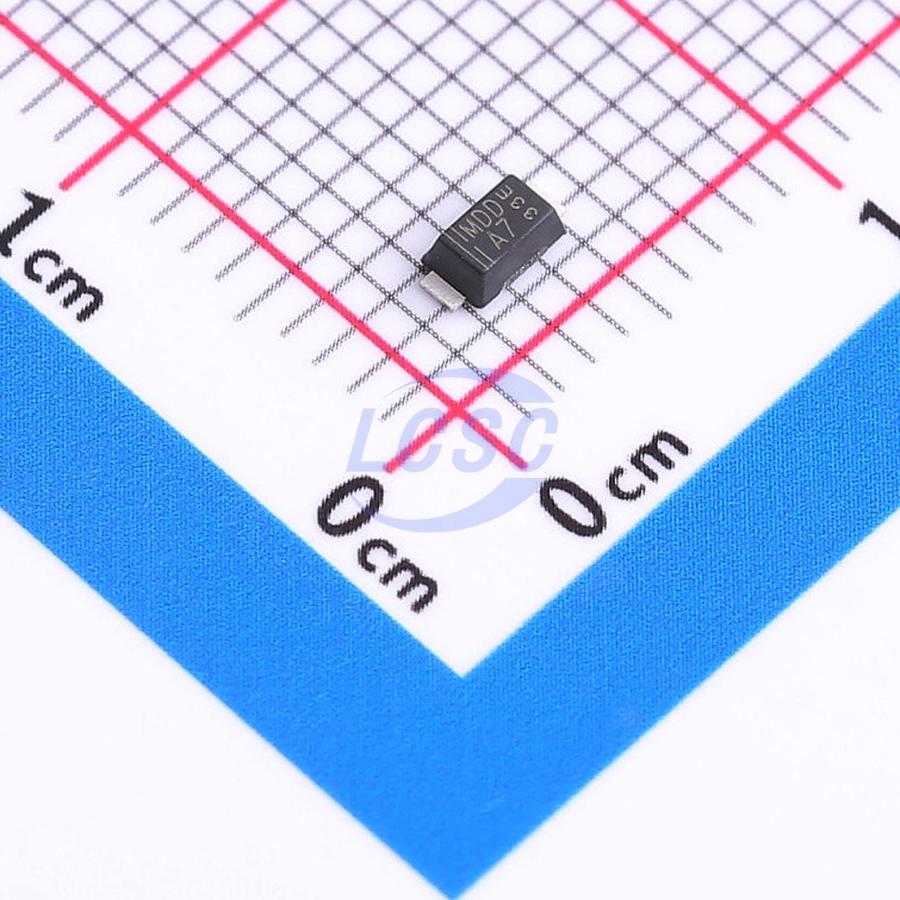

SM4007PL
Diode Independent 1kV 1A Surface Mount SOD-123FL
PopularSOD-123FLROHS CompliantActive
DIODE STANDARD 1kV 1A SOD-123FL
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- SM4007PL
- Store part #
- C64898
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50,73,000 in stock
#C64898
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.924 | ₹92.40 |
| 1,000+ | ₹0.737 | ₹737.00 |
| 3,000+ | ₹0.528 | ₹1,584.00 |
| 9,000+ | ₹0.462 | ₹4,158.00 |
| 51,000+ | ₹0.440 | ₹22,440.00 |
| 99,000+ | ₹0.418 | ₹41,382.00 |
100 × ₹0.924
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM4007PL
₹92.40 for 100 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 10uA@1kV
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.031 g
Overview
Key features
- Glass passivated device
- Ideal for SMT applications
- Low reverse leakage current
- Metallurgical bond construction
- Guaranteed high-temperature soldering: 260°C/10 sec, lead length 0.375" (9.5mm), pull strength 5 lbs (2.3kg)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSR1M#C64897MDD(Microdiode Semiconductor) · SOD-123FL | MDD(Microdiode Semiconductor) | SOD-123FL | 3,000 | ₹1.24 · 3,000 in stock | View |
 | SOD4007#C18124MDD(Microdiode Semiconductor) · SOD-123FL | MDD(Microdiode Semiconductor) | SOD-123FL | 3,33,350 | ₹1.08 · 3,33,350 in stock | View |
