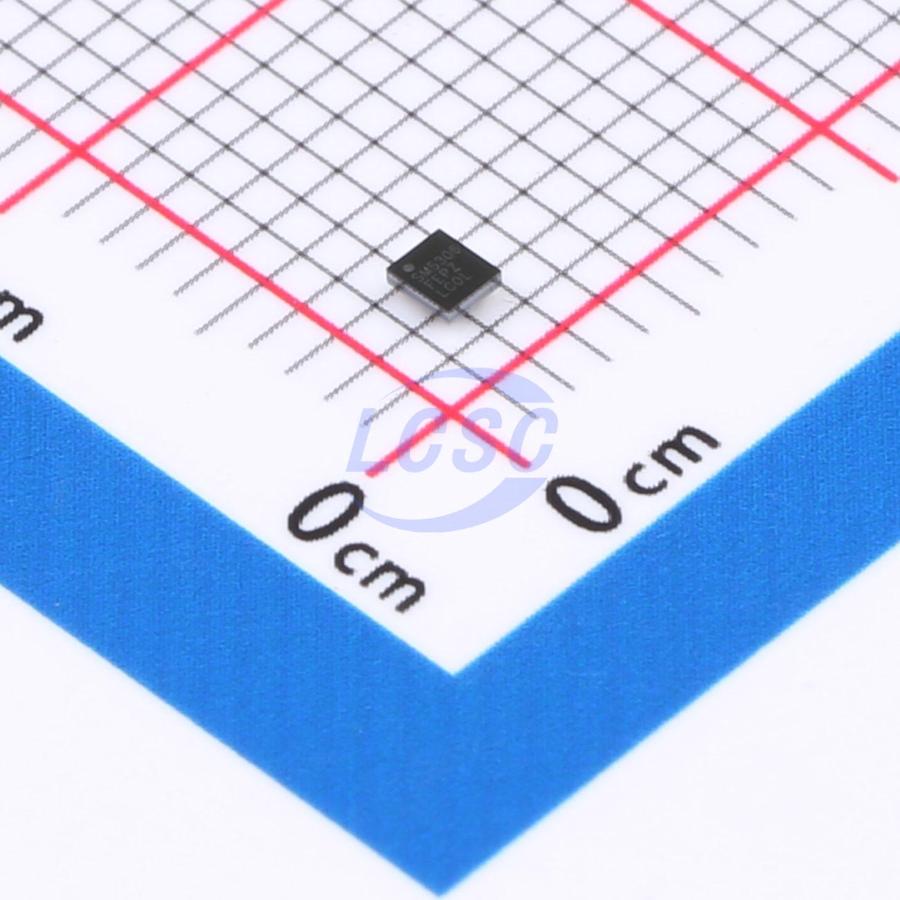

Siliconmitus(Silicon Mitus)

SM5306

500kHz~1MHz 2 Boost 28.5mA 2.5V~5.5V WLCSP-12 LED Drivers ICs

WLCSP-12RoHSActive

High-Efficiency Dual-String with up to 10-W LED White LED Driver

Manufacturer: Siliconmitus(Silicon Mitus)
Manufacturer part #: SM5306
Store part #: C340706
Package / case: WLCSP-12
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,785 in stock

#C340706

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹51.87	₹51.87
10+	₹40.60	₹406.00
30+	₹35.88	₹1,076.40
100+	₹29.74	₹2,974.00
500+	₹28.30	₹14,150.00

Quantity (min 1)

1 × ₹51.87

₹51.87

excl. GST

₹61.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SM5306

₹51.87 for 1 + GST

Specifications

Features: Over Voltage Protection;Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
Frequency - Switching: 500kHz~1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+85℃
Number of Channels: 2
Topology: Boost
Output Current: 28.5mA
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.018 g

Overview

The SM5306 is a current mode boost converter which supplies the power and controls current in up to two strings of 10 LEDs per string. Programming is done over an I²C-compatible interface. The maximum LED current is adjustable from 5mA to 28.5mA. At any given maximum LED current the LED brightness is further adjusted with exponential or linear dimming steps. Additionally, pulsed width modulation (PWM) brightness control can be enabled allowing for LED current adjustment by a logic level PWM signal. The boost switching frequency is programmable at 500kHz for low switching loss performance or 1MHz to allow the use of tiny low profile inductors. A setting for a 10% offset of these frequencies is available. Over Voltage Protection is programmable at 16V, 24V, 32V, or 40V to accommodate a wide variety of LED configurations and schottky diode/output capacitor combinations. The SM5306 is available in a 12-bump, 1.65mm x 1.43mm WLCSP package.

Applications

Mobile and Smart Phones LCD Backlight
Tablet LCD Backlight
Portable Devices LCD Backlight

Key features

Drives up to Two String of 10 Series LEDs
11-bit Programmable Dimming Resolution
Exponential or Linear Brightness Control
PWM Brightness Control for CABC Operation
Independent Current Control per String
Internal Soft-Start Limits Inrush Current
Wide 2.5V to 5.5V Input Voltage Range
Adaptive Headroom Control
Selectable Boost Frequency of 500kHz or 1MHz with Optionally Additional Offset
12-Bump 1.65mm x 1.43mm WLCSP Package
Protections: Programmable 16V/24V/32V/40V Over-Voltage Protection, LED Open/Short Circuit Protection, Thermal Shutdown, Current Limit
