STDatasheet (PDF)

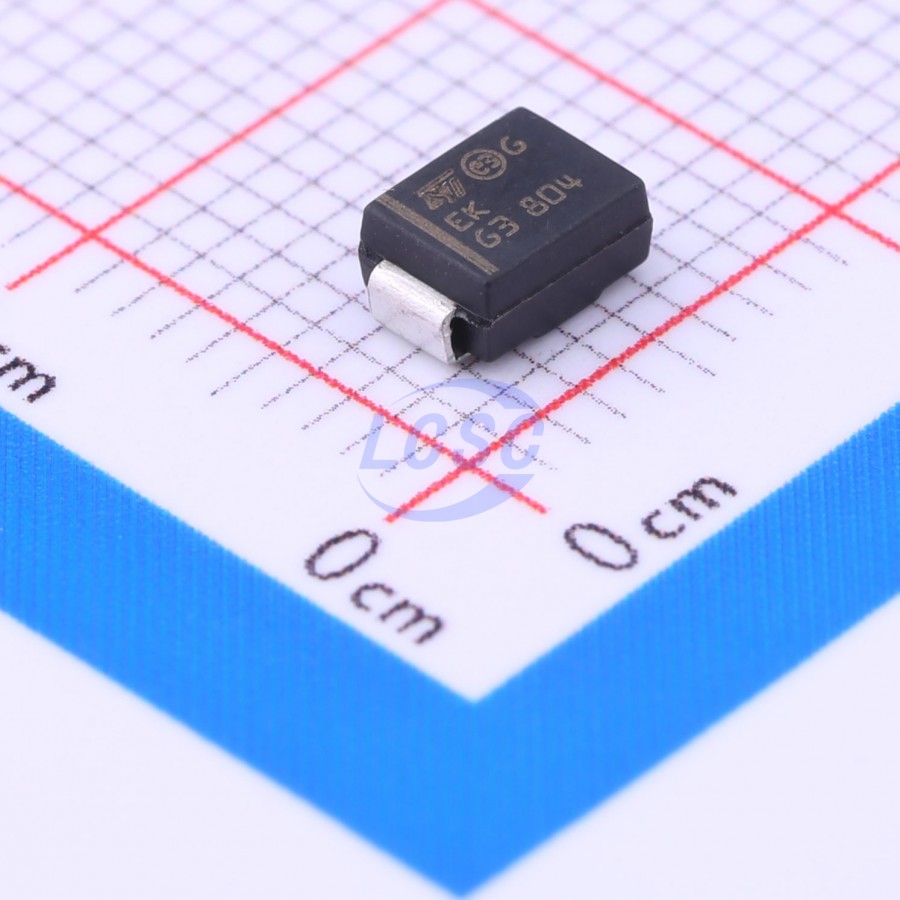

SM6T22A
30.6VC Clamp 102A@8/20us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 18.8VWM 30.6VC SMB(DO-214AA)
- Manufacturer
- ST
- Manufacturer part #
- SM6T22A
- Store part #
- C283616
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C283616
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.93 | ₹234.65 |
| 50+ | ₹37.34 | ₹1,867.00 |
| 150+ | ₹33.23 | ₹4,984.50 |
| 500+ | ₹28.10 | ₹14,050.00 |
| 2,500+ | ₹25.82 | ₹64,550.00 |
| 5,000+ | ₹24.45 | ₹1,22,250.00 |
5 × ₹46.93
₹234.65
excl. GST
₹276.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM6T22A
₹234.65 for 5 + GST
Specifications
- Clamping Voltage
- 30.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 102A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 20.9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 18.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.224 g
