STDatasheet (PDF)

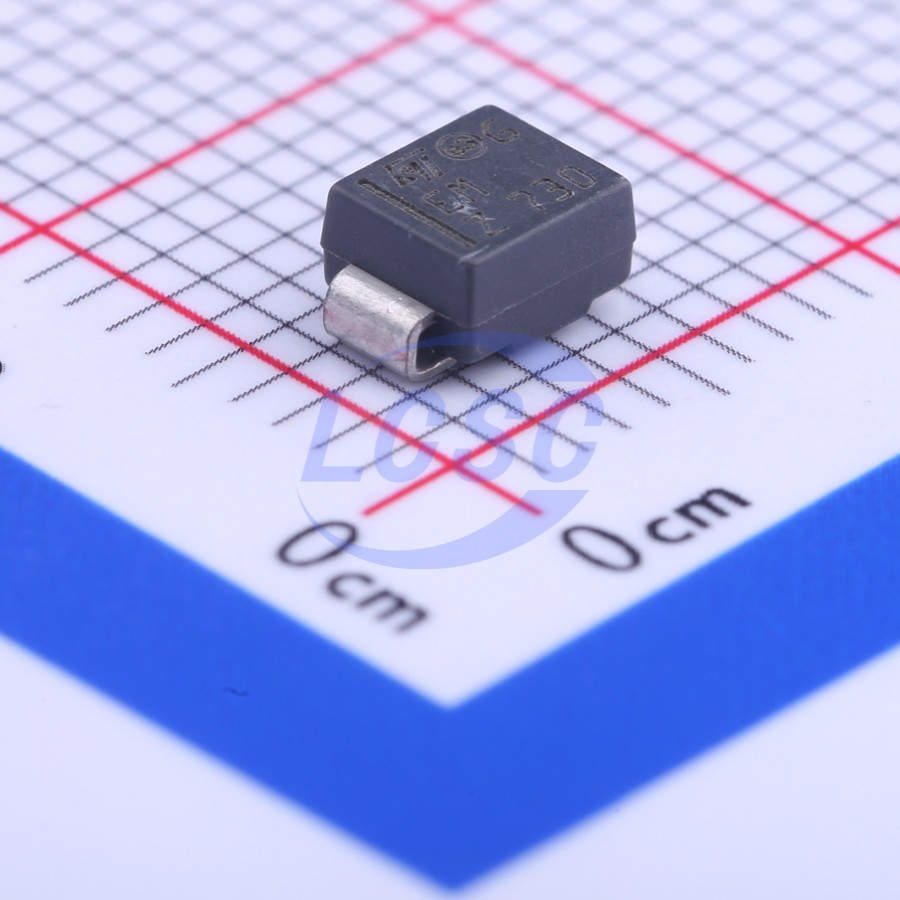

SM6T24A
42.8VC Clamp 93A@8/20us Ipp TVS DIODE SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
TVS DIODE 24VWM 42.8VC SMB(DO-214AA)
- Manufacturer
- ST
- Manufacturer part #
- SM6T24A
- Store part #
- C133694
- Package / case
- SMB(DO-214AA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C133694
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.10 | ₹110.50 |
| 50+ | ₹17.54 | ₹877.00 |
| 150+ | ₹15.59 | ₹2,338.50 |
| 500+ | ₹13.16 | ₹6,580.00 |
| 2,500+ | ₹12.07 | ₹30,175.00 |
| 5,000+ | ₹11.42 | ₹57,100.00 |
5 × ₹22.10
₹110.50
excl. GST
₹130.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SM6T24A
₹110.50 for 5 + GST
Specifications
- Clamping Voltage
- 42.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 93A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 24V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.224 g
