VISHAYDatasheet (PDF)

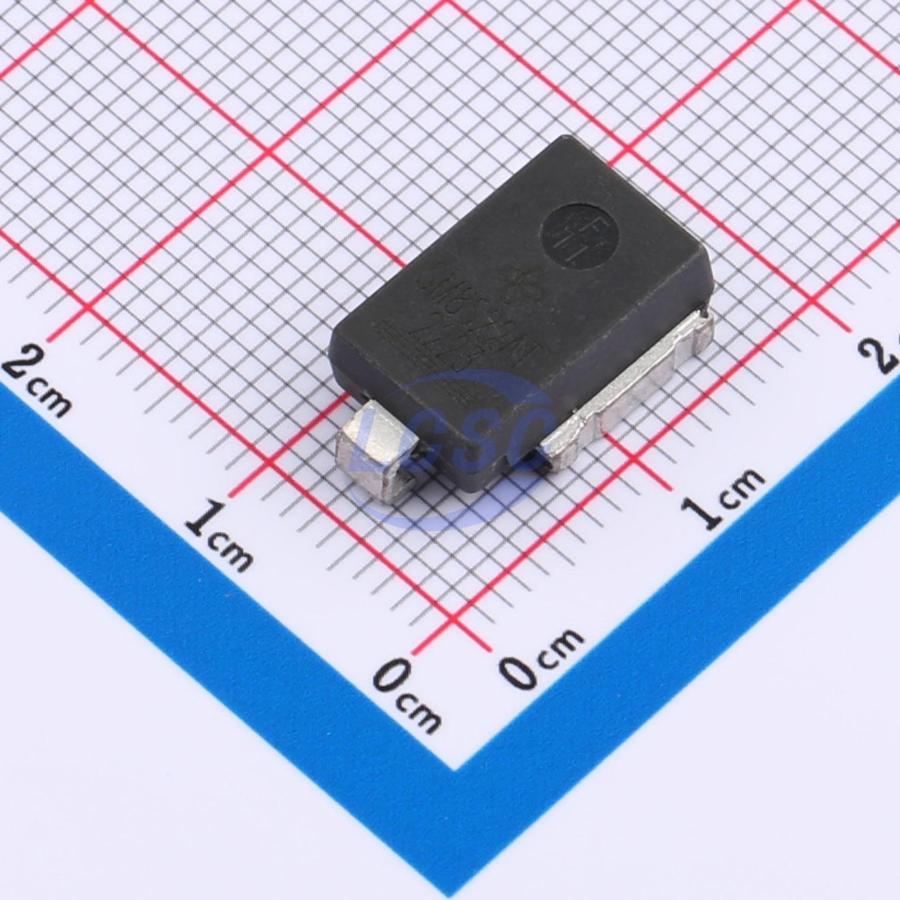

SM8S22ATHE3/I
35.5VC Clamp 186A@10/1000us Ipp TVS DIODE DO-218AC
DO-218ACROHS3 CompliantDiscontinued
TVS DIODE 22VWM 35.5VC DO-218AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SM8S22ATHE3/I
- Store part #
- C1976869
- Package / case
- DO-218AC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C1976869
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹370.35 | ₹370.35 |
| 10+ | ₹364.98 | ₹3,649.80 |
| 30+ | ₹361.31 | ₹10,839.30 |
| 100+ | ₹357.66 | ₹35,766.00 |
1 × ₹370.35
₹370.35
excl. GST
₹437.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
SM8S22ATHE3/I
₹370.35 for 1 + GST
Specifications
- Clamping Voltage
- 35.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 186A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 6.6kW@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 26.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.92 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
Key features
- Junction passivation optimized design passivated anisotropic rectifier technology
- T_J = 175 °C capability suitable for high reliability and automotive requirement RoHS
- Available in uni-directional polarity only COMPLIANT
- Low leakage current
- Low forward voltage drop
- High surge capability
- Meets ISO7637-2 surge specification (varied by test condition)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
- AEC-Q101 qualified
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM8S22A#C19196644AnBon · DO-218AB | AnBon | DO-218AB | 459 | ₹94.57 · 459 in stock | View |
 | SM8S22AQ#C20603596YANGJIE · DO-218AB | YANGJIE | DO-218AB | 10 | ₹208.03 · 10 in stock | View |
 | SM8S22A#C5455803XCH · DO-218 | XCH | DO-218 | 63 | ₹143.84 · 63 in stock | View |
 | SM8S22AHE3_A/I#C1973680VISHAY · DO-218AB | VISHAY | DO-218AB | 5 | ₹459.05 · 5 in stock | View |
 | SM8S22A#C314440DOWO · DO-218AB | DOWO | DO-218AB | 2,045 | ₹168.52 · 2,045 in stock | View |
