LittelfuseDatasheet (PDF)

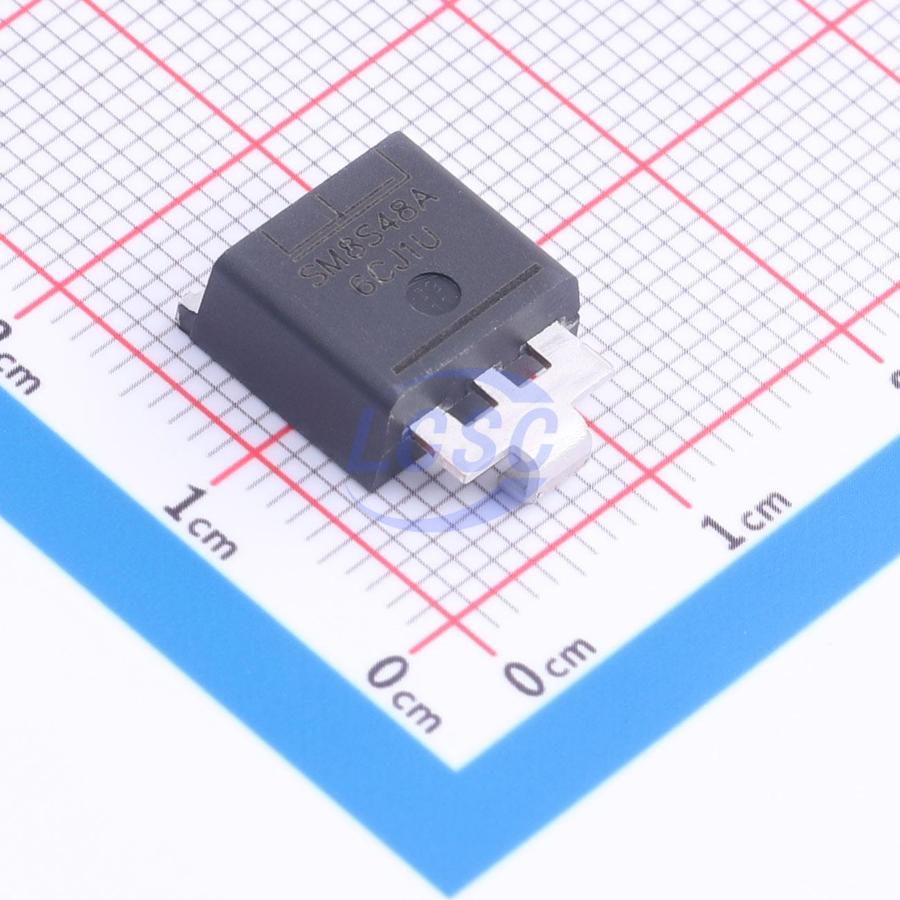

SM8S48A
77.4V 89.7A@10/1000us 7kW@10/1000us 58.9V Unidirectional 48V SMTO-263 TVS Diodes
SMTO-263RoHSActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SM8S48A
- Store part #
- C41889604
- Package / case
- SMTO-263
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
487 in stock
#C41889604
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹403.53 | ₹403.53 |
| 10+ | ₹341.48 | ₹3,414.80 |
| 30+ | ₹302.65 | ₹9,079.50 |
| 100+ | ₹262.95 | ₹26,295.00 |
| 500+ | ₹244.94 | ₹1,22,470.00 |
| 1,000+ | ₹237.13 | ₹2,37,130.00 |
1 × ₹403.53
₹403.53
excl. GST
₹476.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
SM8S48A
₹403.53 for 1 + GST
Specifications
- Clamping Voltage
- 77.4V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 89.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 7kW@10/1000us
- Voltage - Breakdown
- 58.9V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2uA
- Reverse Stand-Off Voltage (Vrwm)
- 48V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.942 g
Overview
The SM8S series TVS diodes feature an SMTO-263 package with modified leads. They protect sensitive electronic equipment from voltage transient events caused by lightning strikes and inductive load switching.
Applications
- TVS components are ideal for protecting I/O interfaces, VCC buses, and other vulnerable circuits in telecommunications, computer, industrial, and consumer electronics applications.
Key features
- 7000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle) 0.01%
- SMTO-263 low-profile surface mount package, minimizing PCB footprint
- Typical failure mode is short circuit due to overvoltage or overcurrent
- Whisker testing per Table 4a and 4c of JEDEC JESD201A, passing Level 1 and Level 2
- IEC 61000-4-2 ESD 30kV (air), 30kV (contact)
- Glass passivated chip junction
- Low dynamic resistance
- VBR@TJ = VBR@25°C×(1 + αT×(T - 25)) (αT: temperature coefficient, typical value 0.1%)
- UL recognized compound, meeting V-0 flammability rating
- Halogen-free and RoHS compliant
- Lead-free E3 indicates second-level interconnect lead-free, terminal plating material is tin (Sn) (IPC/JEDEC J-STD-609A.01)
- Recognized by UL 497B as an isolated loop circuit protector
