STDatasheet (PDF)

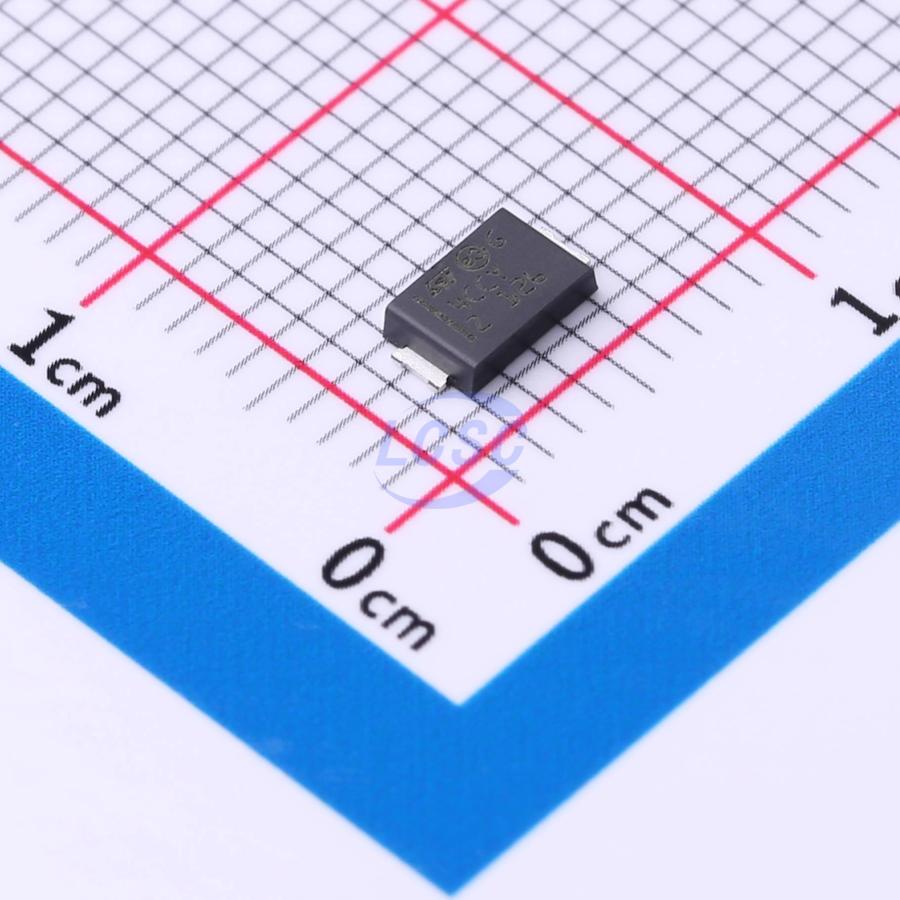

SMA4F36AY
76VC Clamp 30A@8/20us Ipp TVS DIODE SMA-flat
SMA-flatRoHSActive
TVS DIODE 36VWM 76VC SMA-flat
- Manufacturer
- ST
- Manufacturer part #
- SMA4F36AY
- Store part #
- C3714040
- Package / case
- SMA-flat
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3714040
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.24 | ₹126.24 |
| 10+ | ₹100.47 | ₹1,004.70 |
| 30+ | ₹87.60 | ₹2,628.00 |
| 100+ | ₹74.92 | ₹7,492.00 |
| 500+ | ₹67.20 | ₹33,600.00 |
| 1,000+ | ₹63.33 | ₹63,330.00 |
1 × ₹126.24
₹126.24
excl. GST
₹148.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SMA4F36AY
₹126.24 for 1 + GST
Specifications
- Clamping Voltage
- 76V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 30A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
