VISHAYDatasheet (PDF)

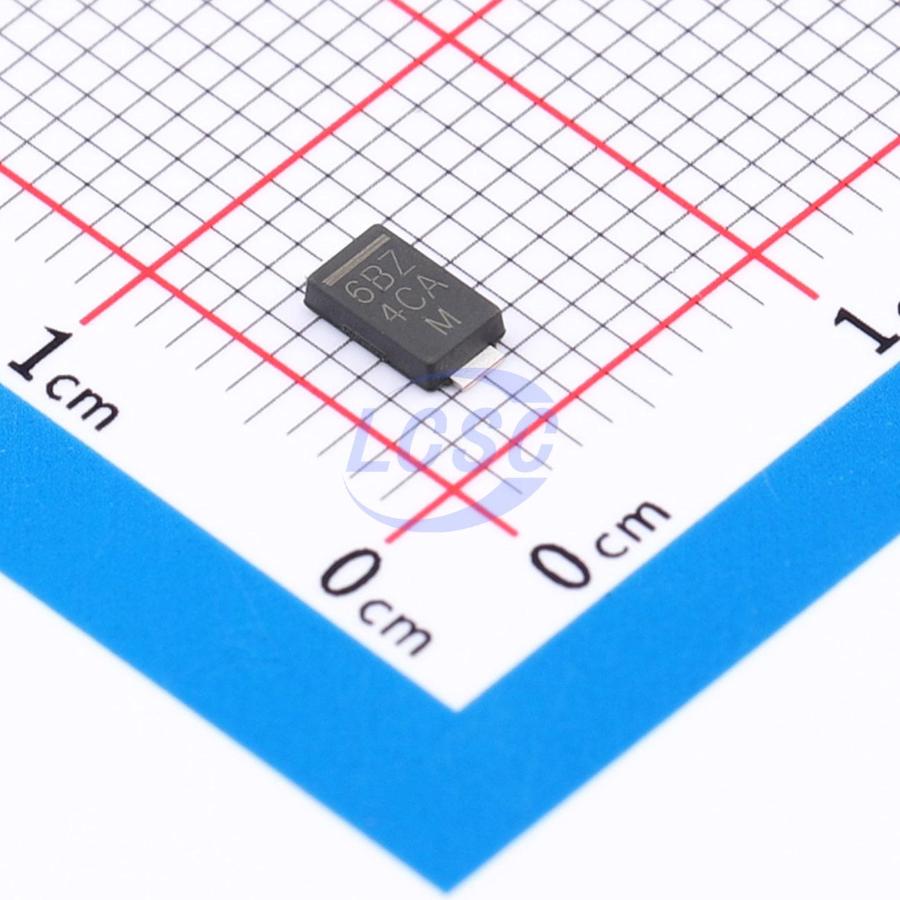

SMA6F24A-M3/H
39V 4kW@8/20us 29.5V 24V DO-221AC(SLIMSMA) TVS Diodes RoHS
DO-221AC(SLIMSMA)ROHS3 CompliantActive
TVS DIODE 24VWM 39VC DO-221AC(SLIMSMA)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMA6F24A-M3/H
- Store part #
- C20036964
- Package / case
- DO-221AC(SLIMSMA)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C20036964
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹30.22 | ₹30.22 |
| 10+ | ₹29.56 | ₹295.60 |
| 30+ | ₹29.12 | ₹873.60 |
| 100+ | ₹28.70 | ₹2,870.00 |
1 × ₹30.22
₹30.22
excl. GST
₹35.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
SMA6F24A-M3/H
₹30.22 for 1 + GST
Specifications
- Clamping Voltage
- 39V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Voltage - Breakdown
- 29.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Very low profile
- typical height of 0.95mm
- Ideal for automated placement
- Unidirectional only
- Excellent clamping capability
- Peak pulse power: 600 W (10/1000 μs)
- 4 kW (8/20 μs)
- ESD capability: IEC 61000-4-2 level 4
- 15 kV (air)
- 8 kV (contact)
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
