VISHAY

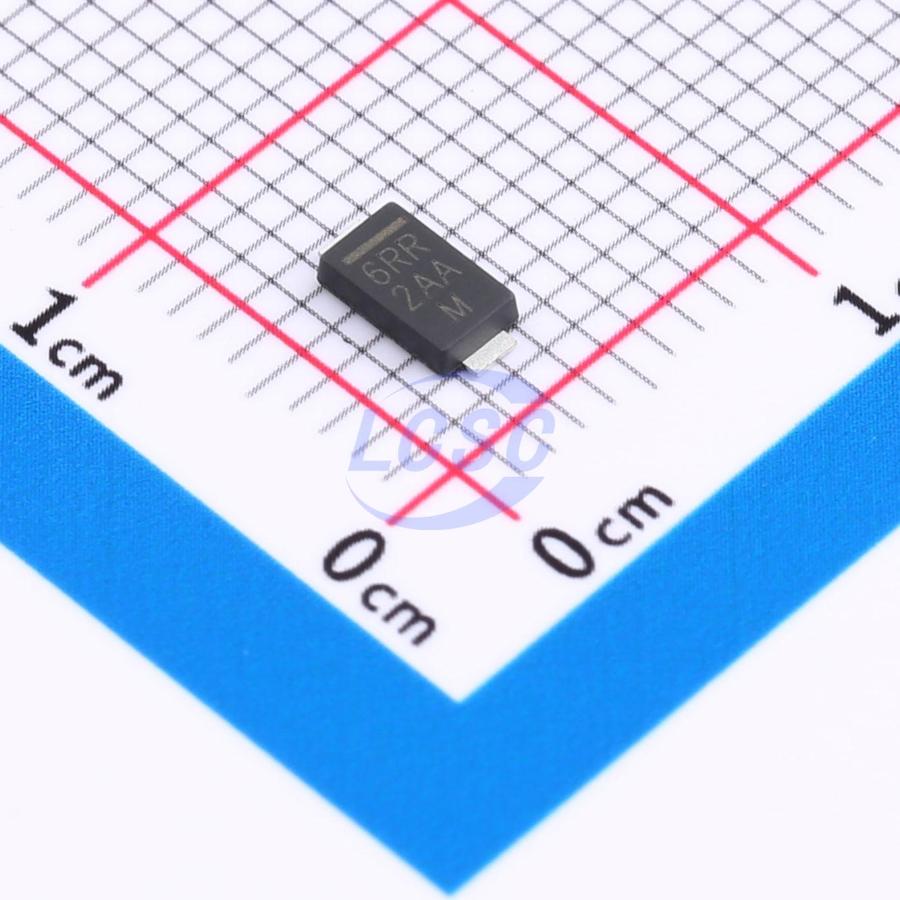

SMA6F75A-M3/H

156VC Clamp 5.58A@8/20us Ipp TVS DIODE DO-221AC(SLIMSMA)

DO-221AC(SLIMSMA)ROHS3 CompliantActive

TVS DIODE 75VWM 156VC DO-221AC(SLIMSMA)

Manufacturer: VISHAY
Manufacturer part #: SMA6F75A-M3/H
Store part #: C7363465
Package / case: DO-221AC(SLIMSMA)
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

15 in stock

#C7363465

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹39.25	₹196.25
50+	₹38.67	₹1,933.50
150+	₹38.27	₹5,740.50
500+	₹37.89	₹18,945.00

Quantity (min 5, multiples of 5)

5 × ₹39.25

₹196.25

excl. GST

₹231.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,500 per reel

SMA6F75A-M3/H

₹196.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 156V
Operating Temperature: -55℃~+175℃
Peak Pulse Current (Ipp): 5.58A@8/20us
Peak Pulse Power Dissipation (Ppp): 4kW@8/20us
Voltage - Breakdown: 92.1V
type: TVS
Reverse Leakage Current (Ir): 200nA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 75V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.136 g

Overview

Applications

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Key features

Very low profile
typical height of 0.95mm
Ideal for automated placement
Unidirectional only
Excellent clamping capability
Peak pulse power: 600 W (10/1000 μs)
4 kW (8/20 μs)
ESD capability: IEC 61000-4-2 level 4
15 kV (air)
8 kV (contact)
Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
