STDatasheet (PDF)

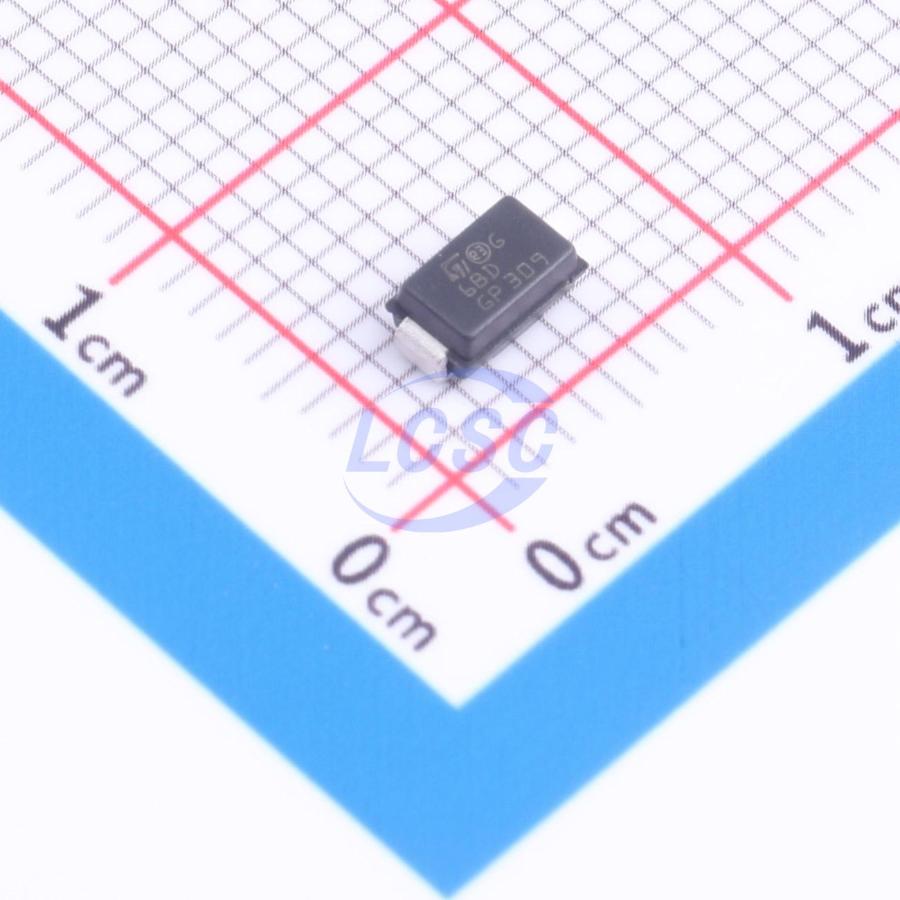

SMA6J8.5CA-TR
19.5VC Clamp 205A@8/20us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- SMA6J8.5CA-TR
- Store part #
- C1979741
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C1979741
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.45 | ₹147.45 |
| 10+ | ₹145.09 | ₹1,450.90 |
| 30+ | ₹143.37 | ₹4,301.10 |
| 100+ | ₹141.65 | ₹14,165.00 |
1 × ₹147.45
₹147.45
excl. GST
₹173.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SMA6J8.5CA-TR
₹147.45 for 1 + GST
Specifications
- Clamping Voltage
- 19.5V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 205A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 4kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 10.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 8.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
